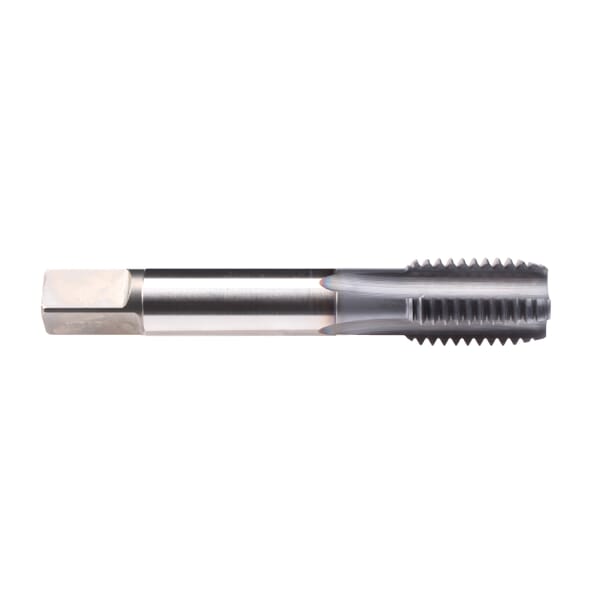

Emuge AU109101.5050 Rekord A-H AU109101 Form C Reduced Shank Straight Flute Machine Tap, Right Hand Cutting, 3/4-16 Thread, Modified Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826500046

MFG #AU109101.5050

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord A-H AU109101, Measurement System: Imperial, UNF, 3/4-16, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.984 in Thread Length, 4-1/4 in Overall Length, 0.59 in Shank Dia, 3.27 in Shank Length, Steel, Cast Iron, Copper Alloys and Synthetics Material Application, No Through Coolant (Yes/No)

$180.96

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Copper Alloys and Synthetics

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 4-1/4 in

Series: Rekord A-H AU109101

Shank Diameter: 0.59 in

Shank Length: 3.27 in

Thread Length: 0.984 in

Thread Size: 3/4-16

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials
TiCN coated for wear resistance and additional tool life
ANSI/ANSI standard dimensions for overall length and shank size
Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord A-H AU109101, Measurement System: Imperial, UNF, 3/4-16, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.984 in Thread Length, 4-1/4 in Overall Length, 0.59 in Shank Dia, 3.27 in Shank Length, Steel, Cast Iron, Copper Alloys and Synthetics Material Application, No Through Coolant (Yes/No)

ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
