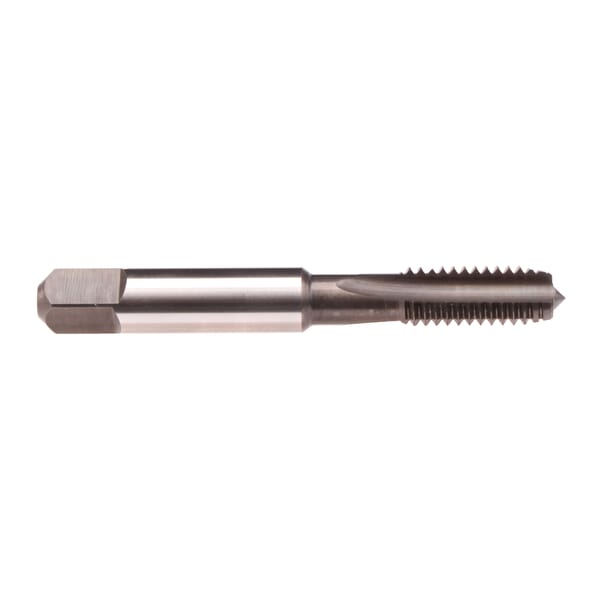

Emuge AU100501.5040 Rekord A-H AU100501 Form C Reinforced Shank Straight Flute Machine Tap, Right Hand Cutting, #8-36 Thread, Modified Bottoming Chamfer, 3 Flutes, NT Coated, HSS-E

ManufacturerEmuge

Part #826500014

MFG #AU100501.5040

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: Rekord A-H AU100501, Measurement System: Imperial, UNF, #8-36, Modified Bottoming Chamfer, 3 Flutes, HSS-E, NT Coated, Class of Fit: 2BX, Right Hand Cutting, 0.512 in Thread Length, 2.13 in Overall Length, 0.168 in Shank Dia, 1.3 in Shank Length, Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics Material Application, No Through Coolant (Yes/No)

$35.85

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: NT Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.13 in

Series: Rekord A-H AU100501

Shank Diameter: 0.168 in

Shank Length: 1.3 in

Thread Length: 0.512 in

Thread Size: #8-36

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials
NT nitride surface treatment for increased wear resistance
ANSI/ANSI standard dimensions for overall length and shank size
Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards

ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: Rekord A-H AU100501, Measurement System: Imperial, UNF, #8-36, Modified Bottoming Chamfer, 3 Flutes, HSS-E, NT Coated, Class of Fit: 2BX, Right Hand Cutting, 0.512 in Thread Length, 2.13 in Overall Length, 0.168 in Shank Dia, 1.3 in Shank Length, Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics Material Application, No Through Coolant (Yes/No)

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: NT Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.13 in

Series: Rekord A-H AU100501

Shank Diameter: 0.168 in

Shank Length: 1.3 in

Thread Length: 0.512 in

Thread Size: #8-36

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials
NT nitride surface treatment for increased wear resistance
ANSI/ANSI standard dimensions for overall length and shank size
Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards

ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
