Sandvik Coromant

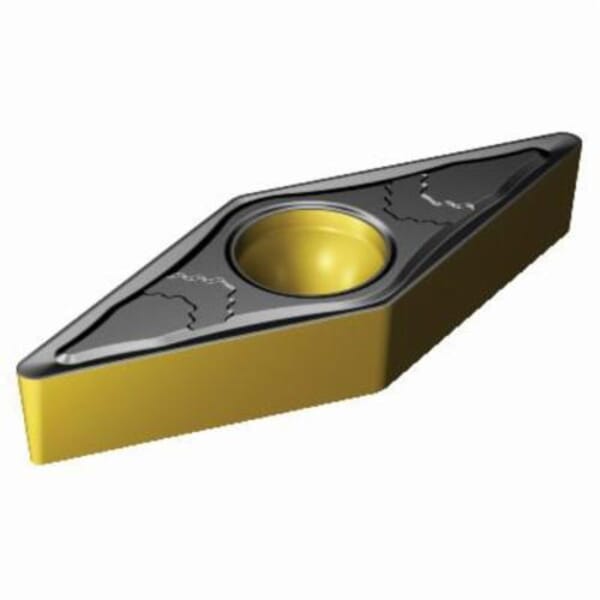

Sandvik Coromant 6198243 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: VBMT 332-PMC 4325, VBMT Insert, Material Grade: K, P, 332 Insert, Diamond Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

ManufacturerSandvik Coromant

Part #826298243

MFG #6198243

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VBMT Insert, 332 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.6537 in Length, 16 Seat, Positive Rake, PMC Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: VBMT 332-PMC 4325, ISO Code: VBMT 16 04 08-PMC 4325, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$26.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: VBMT 332-PMC 4325

Chipbreaker: PMC

Corner Radius: 0.031 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.1732 in

Included Angle: 35 deg

Inscribed Circle: 3/8 in

Insert Size: 332

Insert Style: VBMT

ISO Code: VBMT 16 04 08-PMC 4325

Length: 0.6537 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4325

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 5 deg

Seat Size: 16

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.187 in

Type: 1-Sided Basic Shape

Unobstructed chip flow
Excellent chip control
Exceptional surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VBMT Insert, 332 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.6537 in Length, 16 Seat, Positive Rake, PMC Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: VBMT 332-PMC 4325, ISO Code: VBMT 16 04 08-PMC 4325, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
