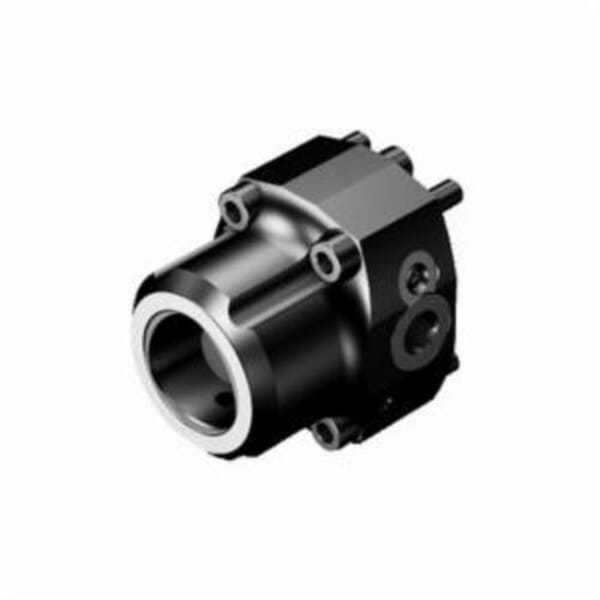

Sandvik Coromant 6294714 Manual Mechanical Right Hand Clamping Unit, PSC Taper Shank, C8 Workpiece Side, 3.6614 in H x 6.1023 in W Arbor/Shank, 3.6614 in Dia Body, 5.0393 in OAL

ManufacturerSandvik Coromant

Part #826294714

MFG #6294714

Sandvik Coromant Clamping Unit, Manual Mechanical Right Hand, 3.6614 in H x 6.1023 in W Arbor/Shank, 3.6614 in Diameter Body, 4.3307 in Gage Length, 5.0393 in Overall Length, 3.6614 in Overall Width, ANSI Code: C8-RC2095-00110, ISO Code: C8-RC2095-00110, 0.7086 in Shank Length, PSC Taper Shank, C8 System Size Workpiece Side

$4,122.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: C8-RC2095-00110

Arbor/Shank Size: 3.6614 in H x 6.1023 in W

Body Diameter: 3.6614 in

Country of Origin: DE

Gage Length: 4.3307 in

ISO Code: C8-RC2095-00110

Manufacturer Name: Sandvik Coromant

Overall Length: 5.0393 in

Overall Width: 3.6614 in

Shank Length: 0.7086 in

Shank Type: Coromant Capto, PSC Taper

System Size Workpiece Side: C8

Type: Manual Mechanical Right Hand

93 mm W shank
0 deg body half taper
Decentral over flange coolant
200 bar coolant
Axial concentric coolant exit
110 mm L protruding
18 mm L dead shank
110 mm overhang
130 Nm torque
Cx-R/LC2095 tool style
80 mm workpiece side connection
Bolt pattern -RC/LC 2095 machine side adaptive interface
20 life cycle state

5723105 Torque Wrench, 5758519 Setting Screw, 5758584 Screw, 5759049 O-Ring, 5759079 Plain Bearing, 5759097 Blind Plug, 5763177 Screw, 5763443 Locking Washer, 5763673 Locating Pin, 5763907 Plain Bearing, 5764082 Key Extension, 6294673 Cam Shaft, 6294698 Bush and 6351087 Draw Bar Set
