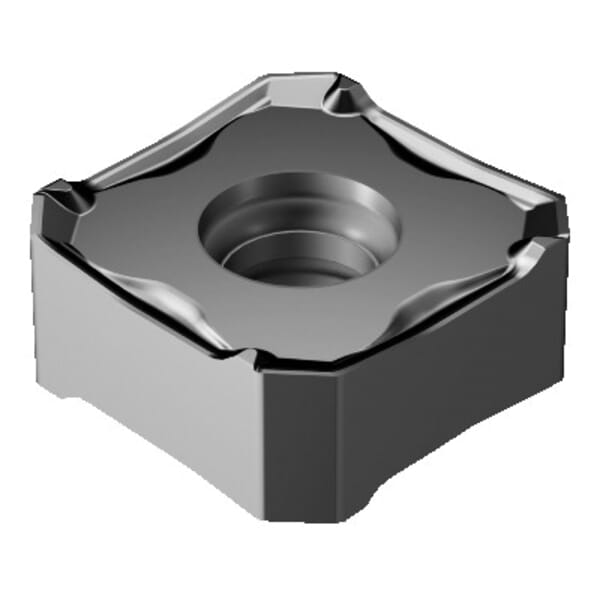

Sandvik Coromant 6289725 CoroMill 345 Milling Insert, ANSI Code: 345R-1305E-KM 3040, 345R/L..E-KM Insert, 1305 Insert, Carbide, Manufacturers Grade: 3040, Squared Shape, Material Grade: K

ManufacturerSandvik Coromant

Part #826289725

MFG #6289725

Sandvik Coromant Milling Insert, Series: CoroMill 345, 345R/L..E-KM Insert, 1305 Insert, Squared, 0.512 in Inscribed Circle, 0.199 in Thickness, 0.512 in Width, 0.512 in Length, KM Chipbreaker, 0.031 in Corner Radius, 45 deg Lead Angle, 0.189 in Hole Dia, Manufacturers Grade: 3040, ANSI Code: 345R-1305E-KM 3040, ISO Code: 345R-1305E-KM 3040, Right Hand, Carbide, MTCVD-TiCN+Al2O3 Coated, Material Grade: K, Cast Iron Material Application

$37.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 345R-1305E-KM 3040
Chipbreaker: KM
Corner Radius: 0.031 in
Country of Origin: SE
Finish: MTCVD-TiCN+Al2O3 Coated
Hand of Insert: Right
Hole Diameter: 0.189 in
Inscribed Circle: 0.512 in
Insert Size: 1305
Insert Style: 345R/L..E-KM
ISO Code: 345R-1305E-KM 3040
Lead Angle: 45 deg
Length: 0.512 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 3040
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Series: CoroMill 345
Shape: Squared
Thickness: 0.199 in
Width: 0.512 in
: Medium Applications
