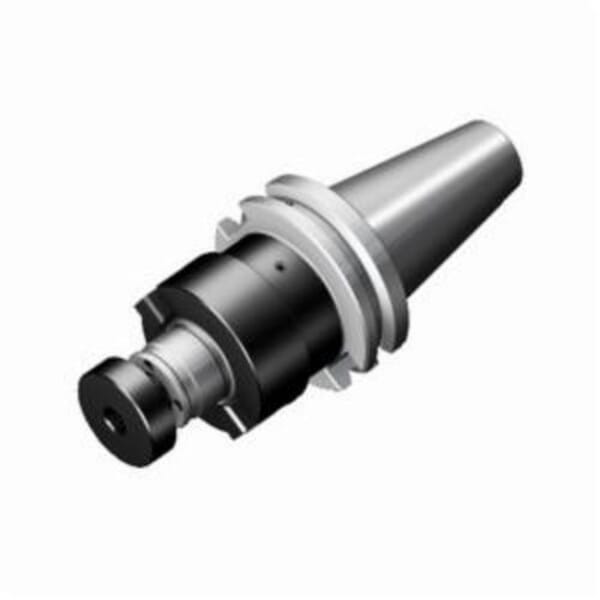

Sandvik Coromant 6078826 Adapter, 1 in Dia Hole, BIG-PLUS CAT-V x Arbor Shank, CAT-V40 Taper, 1 in Dia Nose, 2.1653 in Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6078826 Adapter, 1 in Dia Hole, BIG-PLUS CAT-V x Arbor Shank, CAT-V40 Taper, 1 in Dia Nose, 2.1653 in Projection

ManufacturerSandvik Coromant

Part #826278826

MFG #6078826

Sandvik Coromant Adapter, 1 in Diameter Hole, BIG-PLUS CAT-V x Arbor Shank, CAT-V40 Taper, 1 in Diameter Nose, 2.1653 in Projection, 4.8582 in Overall Length, 2-1/2 in Overall Diameter, 1 in Shank Connection, ANSI Code: A392.54505C4025055, ISO Code: A392.54505C4025055

$551.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: A392.54505C4025055

Country of Origin: DE

Hole Diameter: 1 in

ISO Code: A392.54505C4025055

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1 in

Overall Diameter: 2-1/2 in

Overall Length: 4.8582 in

Projection: 2.1653 in

Shank Connection Size: 1 in

Shank Type: BIG-PLUS CAT-V x Arbor

Taper Size: CAT-V40

5757027 Screw, 5758321 Key, 5758323 Key, 5763008 Screw, 5763012 Screw, 5763777 Driving Key and 5764002 Dowel Set

Balanced design
Steel body
Decentral over flange and axial coolant entry
80 bar coolant
Axial concentric coolant exit on circle
18 mm L shank
55 mm overhang
65 Nm torque
A392.54505C (2A) tool style
20 life cycle state

5757027 Screw, 5758321 Key, 5758323 Key, 5763008 Screw, 5763012 Screw, 5763777 Driving Key and 5764002 Dowel Set

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: A392.54505C4025055

Country of Origin: DE

Hole Diameter: 1 in

ISO Code: A392.54505C4025055

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1 in

Overall Diameter: 2-1/2 in

Overall Length: 4.8582 in

Projection: 2.1653 in

Shank Connection Size: 1 in

Shank Type: BIG-PLUS CAT-V x Arbor

Taper Size: CAT-V40

5757027 Screw, 5758321 Key, 5758323 Key, 5763008 Screw, 5763012 Screw, 5763777 Driving Key and 5764002 Dowel Set

Balanced design
Steel body
Decentral over flange and axial coolant entry
80 bar coolant
Axial concentric coolant exit on circle
18 mm L shank
55 mm overhang
65 Nm torque
A392.54505C (2A) tool style
20 life cycle state

5757027 Screw, 5758321 Key, 5758323 Key, 5763008 Screw, 5763012 Screw, 5763777 Driving Key and 5764002 Dowel Set

Catalog
