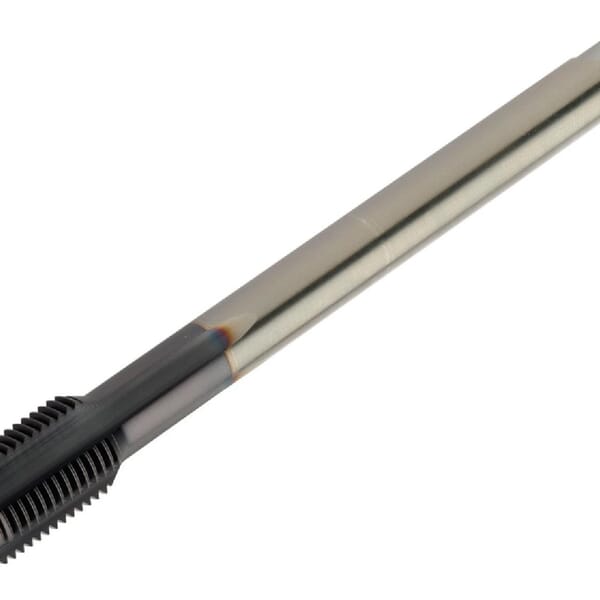

Sandvik Coromant 6871211 CoroTap 100 Straight Flute Tap With Wiper Flat, Right Hand Cutting, M12x1.75 Thread, Semi-Bottoming Chamfer, 5 Flutes, TiAlN Coated, HSS

ManufacturerSandvik Coromant

Part #826271211

MFG #6871211

Sandvik Coromant Straight Flute Tap, Series: CoroTap 100, Measurement System: Metric, UNC Thread Standard, M12x1.75 Thread, Semi-Bottoming Chamfer, 5 Flutes, HSS, TiAlN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 23 mm Thread Length, 110 mm Overall Length, 9 mm Shank Diameter, Cast Iron Material Application, Yes Through Coolant

$156.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 6HX

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: TiAlN Coated

Manufacturer Name: Sandvik Coromant

Material: HSS

Material Application: Cast Iron

Measurement System: Metric

Number of Flutes: 5

Overall Length: 110 mm

Series: CoroTap 100

Shank Diameter: 9 mm

Thread Length: 23 mm

Thread Size: M12x1.75

Thread Standard: UNC

Through Coolant (Yes/No): Yes

Straight flute taps mainly used for short chipping materials like cast iron
The flute is mainly used for cutting fluid and, with internal coolant, chip evacuation is also possible
Superior tool life and high productivity are just some of the benefits offered by this exceptional tool
3 coolant holes for optimized strength
Unique grade with higher hardness to reduce wear on coating and substrate
5 flutes to reduce load on cutting edges and to reduce wear

For through hole and blind hole applications

DIN 376

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 6HX

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: TiAlN Coated

Manufacturer Name: Sandvik Coromant

Material: HSS

Material Application: Cast Iron

Measurement System: Metric

Number of Flutes: 5

Overall Length: 110 mm

Series: CoroTap 100

Shank Diameter: 9 mm

Thread Length: 23 mm

Thread Size: M12x1.75

Thread Standard: UNC

Through Coolant (Yes/No): Yes

Straight flute taps mainly used for short chipping materials like cast iron
The flute is mainly used for cutting fluid and, with internal coolant, chip evacuation is also possible
Superior tool life and high productivity are just some of the benefits offered by this exceptional tool
3 coolant holes for optimized strength
Unique grade with higher hardness to reduce wear on coating and substrate
5 flutes to reduce load on cutting edges and to reduce wear

For through hole and blind hole applications

DIN 376
