Sandvik Coromant 6770750 CoroDrill 880 Drilling Insert, ANSI Code: 880-08 05 W08H-P-GM 4344, Squared Shape, Material Grade: H, K, M, N, P, S, 0805W08 Insert, 880..P-GM Insert, 0.1771 in THK, 0.6082 in Inscribed Circle, Medium Feed, Asymmetrical Point

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

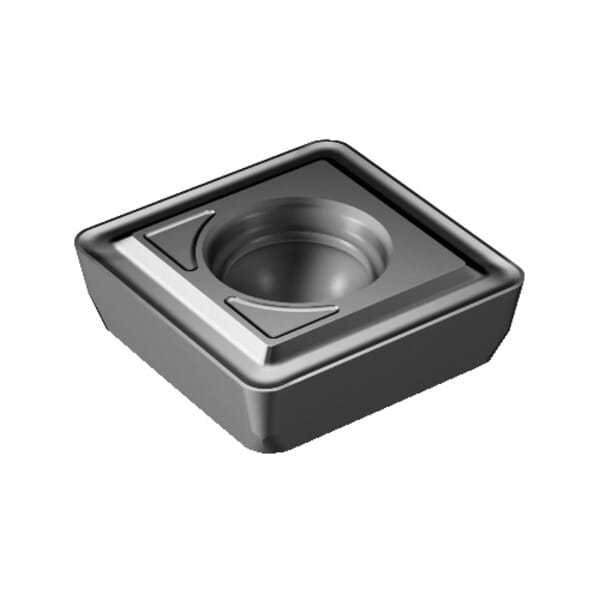

Sandvik Coromant 6770750 CoroDrill 880 Drilling Insert, ANSI Code: 880-08 05 W08H-P-GM 4344, Squared Shape, Material Grade: H, K, M, N, P, S, 0805W08 Insert, 880..P-GM Insert, 0.1771 in THK, 0.6082 in Inscribed Circle, Medium Feed, Asymmetrical Point

ManufacturerSandvik Coromant

Part #826270750

MFG #6770750

Sandvik Coromant Drilling Insert, Series: CoroDrill 880, 880..P-GM Insert, 0805W08 Insert, Squared, 0.6082 in Inscribed Circle, 0.1771 in Thickness, GM Chipbreaker, 0.0314 in Corner Radius, 0.185 in Hole Dia, Manufacturers Grade: 4344, ANSI Code: 880-08 05 W08H-P-GM 4344, Right Hand, ISO Code: 880-08 05 W08H-P-GM 4344, Asymmetrical Point, Medium Feed, For Use On: Cast Iron, Heat Resistant Materials, Hardened Materials, Steel, Stainless Steel and Super Alloys, Carbide, CVD-TiAlN2 Coated, Material Grade: H, K, M, N, P, S

$30.38

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 880-08 05 W08H-P-GM 4344

Chipbreaker: GM

Corner Radius: 0.0314 in

Country of Origin: SE

Drilling Application: Asymmetrical Point

Feed Type: Medium

Finish: CVD-TiAlN2 Coated

For Use On: Cast Iron, Heat Resistant Materials, Hardened Materials, Steel, Stainless Steel and Super Alloys

Hand of Insert: Right

Hole Diameter: 0.185 in

Inscribed Circle: 0.6082 in

Insert Size: 0805W08

Insert Style: 880..P-GM

ISO Code: 880-08 05 W08H-P-GM 4344

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4344

Material: Carbide

Material Grade: H, K, M, N, P, S

Series: CoroDrill 880

Shape: Squared

Thickness: 0.1771 in

Wiper geometry for best surface finish or higher feed possibilities
Optimized chip channels for accelerated chip evacuation
Easy identification due to laser marking with drill-, insert- and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life
Entering the workpiece with an assymetrical drill by default generates an unbalance
Step technology provide a step-by-step entry with lower cutting forces, and therefore enable a higher productivity as well as close hole tolerances
Inserts and geometries, available for all materials and applications, provide high productivity and extended tool life
With CoroDrill 880, you can do more than just drilling a hole
The tool can also be used for helical interpolation, boring, plunging, and turning

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 880-08 05 W08H-P-GM 4344

Chipbreaker: GM

Corner Radius: 0.0314 in

Country of Origin: SE

Drilling Application: Asymmetrical Point

Feed Type: Medium

Finish: CVD-TiAlN2 Coated

For Use On: Cast Iron, Heat Resistant Materials, Hardened Materials, Steel, Stainless Steel and Super Alloys

Hand of Insert: Right

Hole Diameter: 0.185 in

Inscribed Circle: 0.6082 in

Insert Size: 0805W08

Insert Style: 880..P-GM

ISO Code: 880-08 05 W08H-P-GM 4344

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4344

Material: Carbide

Material Grade: H, K, M, N, P, S

Series: CoroDrill 880

Shape: Squared

Thickness: 0.1771 in

Wiper geometry for best surface finish or higher feed possibilities
Optimized chip channels for accelerated chip evacuation
Easy identification due to laser marking with drill-, insert- and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life
Entering the workpiece with an assymetrical drill by default generates an unbalance
Step technology provide a step-by-step entry with lower cutting forces, and therefore enable a higher productivity as well as close hole tolerances
Inserts and geometries, available for all materials and applications, provide high productivity and extended tool life
With CoroDrill 880, you can do more than just drilling a hole
The tool can also be used for helical interpolation, boring, plunging, and turning
