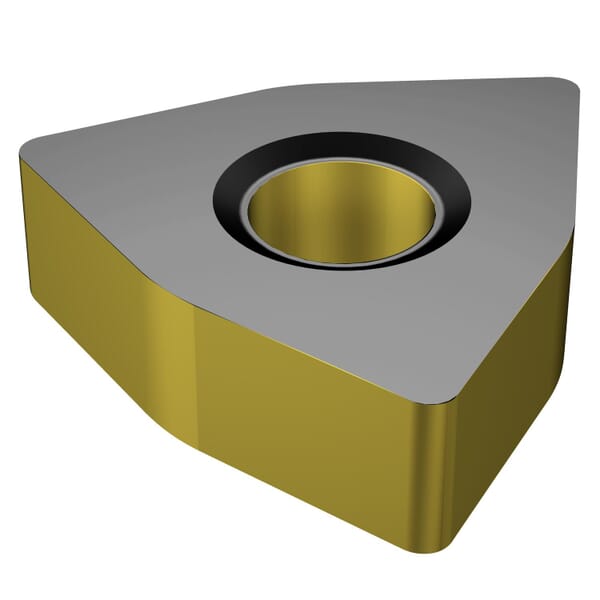

Sandvik Coromant 6868612 T-Max P Turning Insert, ANSI Code: WNMA 333-KR 3225, WNMA Insert, Material Grade: K, 333 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3225

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6868612 T-Max P Turning Insert, ANSI Code: WNMA 333-KR 3225, WNMA Insert, Material Grade: K, 333 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3225

ManufacturerSandvik Coromant

Part #826268612

MFG #6868612

Sandvik Coromant Turning Insert, Series: T-Max P, WNMA Insert, 333 Insert, Trigon, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 06 Seat, Negative Rake, KR Chipbreaker, 0.047 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 3225, ANSI Code: WNMA 333-KR 3225, ISO Code: WNMA 06 04 12-KR 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

$15.77

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMA 333-KR 3225

Chipbreaker: KR

Corner Radius: 0.047 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron

Hole Diameter: 0.15 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 333

Insert Style: WNMA

ISO Code: WNMA 06 04 12-KR 3225

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3225

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 6

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Roughing Applications
