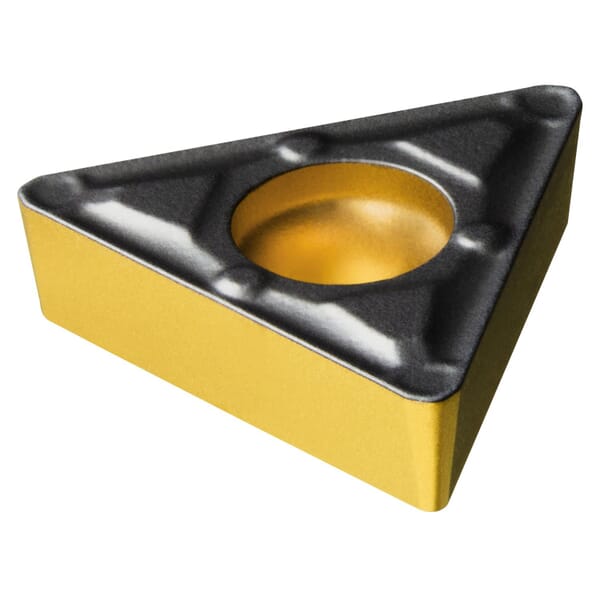

Sandvik Coromant 6868306 CoroTurn 107 Basic Shape Turning Insert, ANSI Code: TCMX 221-WF 3225, TCMX Insert, Material Grade: K, 221 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3225

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6868306 CoroTurn 107 Basic Shape Turning Insert, ANSI Code: TCMX 221-WF 3225, TCMX Insert, Material Grade: K, 221 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3225

ManufacturerSandvik Coromant

Part #826268306

MFG #6868306

Sandvik Coromant Turning Insert, Basic Shape, Series: CoroTurn 107, TCMX Insert, 221 Insert, Triangular, 0.098 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.422 in Length, 11 Seat, Positive Rake, WF Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 3225, ANSI Code: TCMX 221-WF 3225, ISO Code: TCMX 11 03 04-WF 3225, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

$17.23

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: TCMX 221-WF 3225

Chipbreaker: WF

Corner Radius: 0.0156 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron

Hole Diameter: 0.1102 in

Included Angle: 60 deg

Inscribed Circle: 1/4 in

Insert Size: 221

Insert Style: TCMX

ISO Code: TCMX 11 03 04-WF 3225

Length: 0.422 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3225

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 0.098 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 11

Series: CoroTurn 107

Shape: Triangular

Thickness: 1/8 in

Type: Basic Shape

Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish

Finishing Applications

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: TCMX 221-WF 3225

Chipbreaker: WF

Corner Radius: 0.0156 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron

Hole Diameter: 0.1102 in

Included Angle: 60 deg

Inscribed Circle: 1/4 in

Insert Size: 221

Insert Style: TCMX

ISO Code: TCMX 11 03 04-WF 3225

Length: 0.422 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3225

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 0.098 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 11

Series: CoroTurn 107

Shape: Triangular

Thickness: 1/8 in

Type: Basic Shape

Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish

Finishing Applications

SDS
