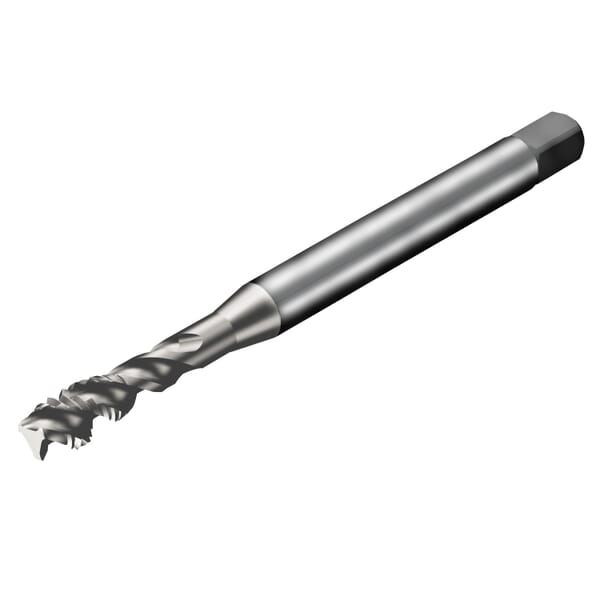

Sandvik Coromant 6966752 CoroTap 300 Spiral Flute Tap, Right Hand Cutting, #4-48 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Uncoated, HSS-PM

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6966752 CoroTap 300 Spiral Flute Tap, Right Hand Cutting, #4-48 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Uncoated, HSS-PM

ManufacturerSandvik Coromant

Part #826266752

MFG #6966752

Sandvik Coromant Spiral Flute Tap, Measurement System: Imperial, UNF, #4-48, Semi-Bottoming Chamfer, 3 Flutes, HSS-PM, Uncoated, Class of Fit: 3BX, Right Hand Cutting, 0.28 in Thread Length, 2.205 in Overall Length, 0.141 in Shank Dia, Right Hand Flute Direction, Cast Iron, Steel and Alloy Material Application, Yes Through Coolant (Yes/No)

$43.08

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 3BX

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: Uncoated

Flute Direction: Right Hand

Manufacturer Name: Sandvik Coromant

Material: HSS-PM

Material Application: Cast Iron, Steel and Alloy

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.205 in

Series: CoroTap 300

Shank Diameter: 0.141 in

Thread Length: 0.28 in

Thread Size: #4-48

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Edge treatment for reduced axial force and torque makes the tool run more smoothly, reduces risk of cutting edge chipping and improves surface quality, tool life and chip evacuation
The design of the spiral flute secures a constant rake angle and gives a constant cutting process
Back chamfer, used on taps with high helix angle, reduces torque and chipping
Taps with high spiral angle give excellent chip evacuation and possibilities to thread up to 3XD in blind holes
Taps with low spiral angle give strong edges and are suitable for tapping tough materials, generating short chips in blind holes
High speed powder steel taps for improved strength, wear resistance and tool life
Taps optimized for specific materials and taps optimized for flexibility
C threading chamfer (2-3 threads)
C150 manufacturer grade
Cutting tap for cylindrical threads with chip flutes
External coolant
No coolant exit
20 life cycle state

DIN 2184-1|ANSI Specified

For blind hole applications

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 3BX

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: Uncoated

Flute Direction: Right Hand

Manufacturer Name: Sandvik Coromant

Material: HSS-PM

Material Application: Cast Iron, Steel and Alloy

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.205 in

Series: CoroTap 300

Shank Diameter: 0.141 in

Thread Length: 0.28 in

Thread Size: #4-48

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Edge treatment for reduced axial force and torque makes the tool run more smoothly, reduces risk of cutting edge chipping and improves surface quality, tool life and chip evacuation
The design of the spiral flute secures a constant rake angle and gives a constant cutting process
Back chamfer, used on taps with high helix angle, reduces torque and chipping
Taps with high spiral angle give excellent chip evacuation and possibilities to thread up to 3XD in blind holes
Taps with low spiral angle give strong edges and are suitable for tapping tough materials, generating short chips in blind holes
High speed powder steel taps for improved strength, wear resistance and tool life
Taps optimized for specific materials and taps optimized for flexibility
C threading chamfer (2-3 threads)
C150 manufacturer grade
Cutting tap for cylindrical threads with chip flutes
External coolant
No coolant exit
20 life cycle state

DIN 2184-1|ANSI Specified

For blind hole applications
