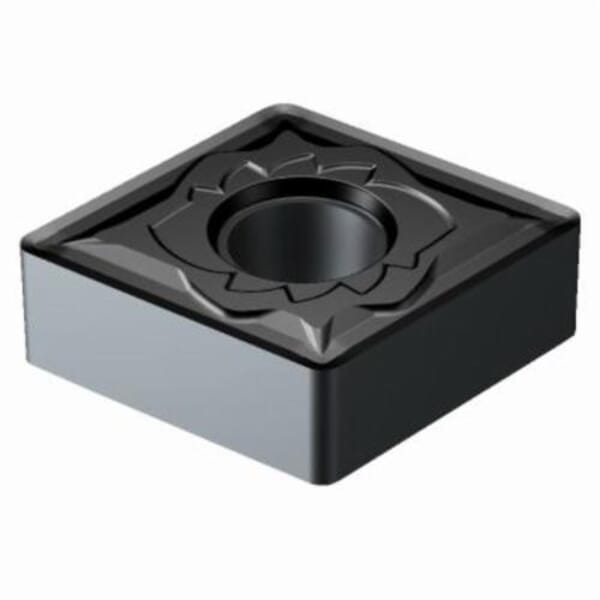

Sandvik Coromant 6066610 T-Max P Turning Insert, ANSI Code: CNMG 643-SMR 1105, CNMG Insert, Material Grade: M, S, 643 Insert, Rhombic Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6066610 T-Max P Turning Insert, ANSI Code: CNMG 643-SMR 1105, CNMG Insert, Material Grade: M, S, 643 Insert, Rhombic Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium

ManufacturerSandvik Coromant

Part #826266610

MFG #6066610

Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 643 Insert, Rhombic, 0.354 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, SMR Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 1105, ANSI Code: CNMG 643-SMR 1105, ISO Code: CNMG 19 06 12-SMR 1105, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium

$39.97

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: CNMG 643-SMR 1105
Chipbreaker: SMR
Corner Radius: 0.047 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlN Coated
For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
Hole Diameter: 0.312 in
Included Angle: 80 deg
Inscribed Circle: 3/4 in
Insert Size: 643
Insert Style: CNMG
ISO Code: CNMG 19 06 12-SMR 1105
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1105
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 0.354 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 19
Series: T-Max P
Shape: Rhombic
Thickness: 1/4 in
: Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 643 Insert, Rhombic, 0.354 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, SMR Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 1105, ANSI Code: CNMG 643-SMR 1105, ISO Code: CNMG 19 06 12-SMR 1105, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: CNMG 643-SMR 1105
Chipbreaker: SMR
Corner Radius: 0.047 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlN Coated
For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
Hole Diameter: 0.312 in
Included Angle: 80 deg
Inscribed Circle: 3/4 in
Insert Size: 643
Insert Style: CNMG
ISO Code: CNMG 19 06 12-SMR 1105
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1105
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 0.354 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 19
Series: T-Max P
Shape: Rhombic
Thickness: 1/4 in
: Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 643 Insert, Rhombic, 0.354 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, SMR Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 1105, ANSI Code: CNMG 643-SMR 1105, ISO Code: CNMG 19 06 12-SMR 1105, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
: SDS
