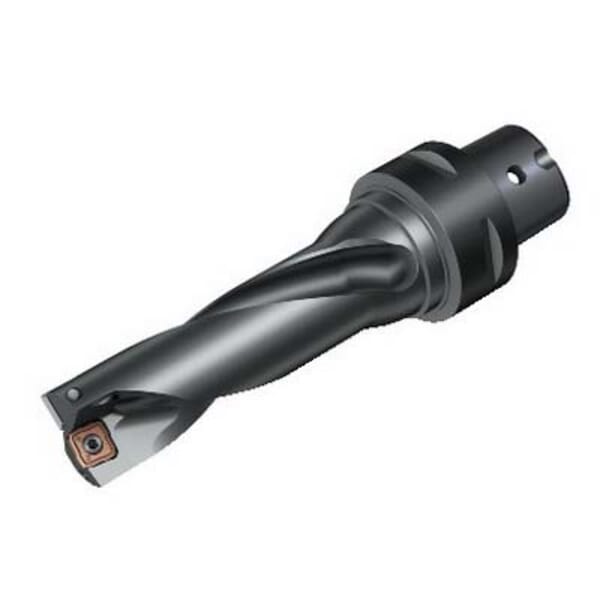

Sandvik Coromant 5765647 CoroDrill 880 Indexable Insert Drill, 1.181 in Drill, C5 Modular Connection, 1.969 in Dia Shank, 3XD Drill Depth by Dia Ratio, 6.575 in OAL, 3.543 in D Max Drill

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5765647 CoroDrill 880 Indexable Insert Drill, 1.181 in Drill, C5 Modular Connection, 1.969 in Dia Shank, 3XD Drill Depth by Dia Ratio, 6.575 in OAL, 3.543 in D Max Drill

ManufacturerSandvik Coromant

Part #826265647

MFG #5765647

Sandvik Coromant Indexable Insert Drill, Series: CoroDrill 880, 1.181 in Drill, 1.969 in Shank Diameter, 1.2043 in Shank Length, Coromant Capto Shank, C5 Modular Connection, 3.543 in Maximum Drill Depth, 6.575 in Overall Length, 1.181 in Diameter, 3XD Drill Depth by Diameter Ratio, 2 Drill Inserts, Insert Compatibility: 880-060406H-C-GM (MIIDM), 880-0604W06H-P-GM (MIIDM), 3.701 in Flute Length, Yes Through Coolant

$1,112.03

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Diameter: 1.181 in

Drill Depth by Diameter Ratio: 3XD

Drill Size: 1.181 in

Flute Length: 3.701 in

Insert Compatibility: 880-060406H-C-GM (MIIDM), 880-0604W06H-P-GM (MIIDM)

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 3.543 in

Modular Connection Size: C5

Number of Drill Inserts: 2

Overall Length: 6.575 in

Series: CoroDrill 880

Shank Diameter: 1.969 in

Shank Length: 1.2043 in

Shank Type: Coromant Capto

Through Coolant (Yes/No): Yes

Wiper geometry for best surface finish or higher feed possibilities
Easy identification due to laser marking with drill insert and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized chip channels for accelerated chip evacuation
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life

For helical interpolation, boring, plunging, turning and drilling

ISO 13399
