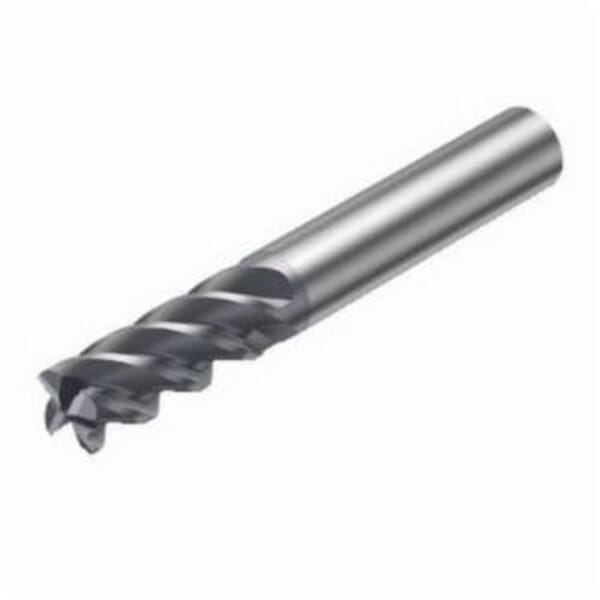

Sandvik Coromant 6259872 CoroMill Plura Square Shoulder End Mill, 0.196 in Dia Cutter, 0.511 in Length of Cut, 4 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826259872

MFG #6259872

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.196 in Diameter Cutter, 2.244 in Overall Length, 0.511 in Length of Cut, 4 Flutes, 0.236 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: 1P341-0500-XA 1620, ISO Code: 1P341-0500-XA 1620, Solid Carbide, PVD Coated

$91.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 1P341-0500-XA 1620

Country of Origin: SE

Cutter Diameter: 0.196 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 45 deg

ISO Code: 1P341-0500-XA 1620

Length of Cut: 0.511 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.244 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Square

1620 manufacturer grade
0.7 mm maximum working engagement
1 maximum working engagement ratio
30 deg body half taper
Center cutting capability
3 mm Dia core at face
0.1 mm W corner chamfer
4 cutting length
Without coolant entry
No coolant exit
4.8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
9 deg radial rake
13.5 deg axial rake
13 mm L usable
21 mm overhang
90 deg y-axis rot
5 deg ramping
80000 r/min

DIN1835-A|DIN6535-HA
