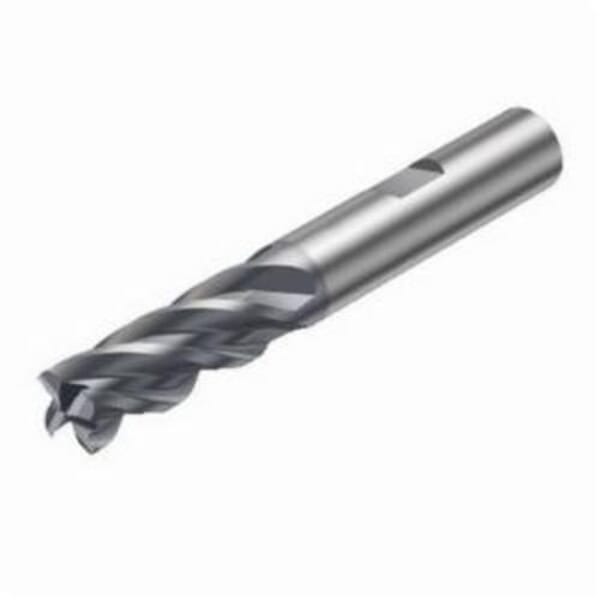

Sandvik Coromant 6259754 CoroMill Plura Square Shoulder End Mill, 0.216 in Dia Cutter, 0.531 in Length of Cut, 4 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6259754 CoroMill Plura Square Shoulder End Mill, 0.216 in Dia Cutter, 0.531 in Length of Cut, 4 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826259754

MFG #6259754

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.216 in Diameter Cutter, 2.244 in Overall Length, 0.531 in Length of Cut, 4 Flutes, 0.236 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Weldon Flat Shank, ANSI Code: 1P240-0550-XB 1630, ISO Code: 1P240-0550-XB 1630, Solid Carbide, PVD Coated

$85.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 1P240-0550-XB 1630

Country of Origin: IT

Cutter Diameter: 0.216 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 35 deg

ISO Code: 1P240-0550-XB 1630

Length of Cut: 0.531 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.244 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Weldon Flat

Type: Square

1630 manufacturer grade
4.8 mm H shank
1 mm maximum working engagement
1 maximum working engagement ratio
30 deg body half taper
Center cutting capability
3.58 mm Dia core at face
0.13 mm W corner chamfer
4 cutting length
Without coolant entry
No coolant exit
5.24 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
9 deg radial rake
5.5 deg axial rake
13 mm L usable
21 mm overhang
90 deg y-axis rot
5 deg ramping

DIN1835-B|DIN6535-HB

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 1P240-0550-XB 1630

Country of Origin: IT

Cutter Diameter: 0.216 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 35 deg

ISO Code: 1P240-0550-XB 1630

Length of Cut: 0.531 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.244 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Weldon Flat

Type: Square

1630 manufacturer grade
4.8 mm H shank
1 mm maximum working engagement
1 maximum working engagement ratio
30 deg body half taper
Center cutting capability
3.58 mm Dia core at face
0.13 mm W corner chamfer
4 cutting length
Without coolant entry
No coolant exit
5.24 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
9 deg radial rake
5.5 deg axial rake
13 mm L usable
21 mm overhang
90 deg y-axis rot
5 deg ramping

DIN1835-B|DIN6535-HB

Catalog

SDS
