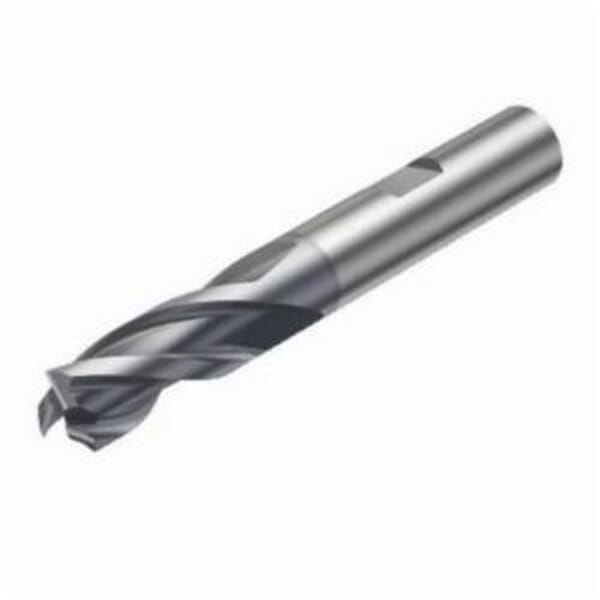

Sandvik Coromant 6259701 CoroMill Plura Square Shoulder End Mill, 0.787 in Dia Cutter, 1.279 in Length of Cut, 3 Flutes, 0.787 in Dia Shank, 4.094 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6259701 CoroMill Plura Square Shoulder End Mill, 0.787 in Dia Cutter, 1.279 in Length of Cut, 3 Flutes, 0.787 in Dia Shank, 4.094 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826259701

MFG #6259701

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.787 in Diameter Cutter, 4.094 in Overall Length, 1.279 in Length of Cut, 3 Flutes, 0.787 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: 1P231-2000-XB 1630, ISO Code: 1P231-2000-XB 1630, Solid Carbide, PVD Coated

$483.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 1P231-2000-XB 1630

Country of Origin: IT

Cutter Diameter: 0.787 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: 1P231-2000-XB 1630

Length of Cut: 1.279 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 4.094 in

Series: CoroMill Plura

Shank Diameter: 0.787 in

Shank Type: Weldon Flat

Type: Square

1630 manufacturer grade
18.2 mm H shank
1 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
11.2 mm Dia core at face
0.3 mm W corner chamfer
3 cutting length
Without coolant entry
No coolant exit
19.4 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
9 deg radial rake
5.5 deg axial rake
32 mm L usable
4 maximum regrinds
54 mm overhang
90 deg y-axis rot
8 deg ramping

DIN1835-B|DIN6535-HB

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.787 in Diameter Cutter, 4.094 in Overall Length, 1.279 in Length of Cut, 3 Flutes, 0.787 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: 1P231-2000-XB 1630, ISO Code: 1P231-2000-XB 1630, Solid Carbide, PVD Coated
