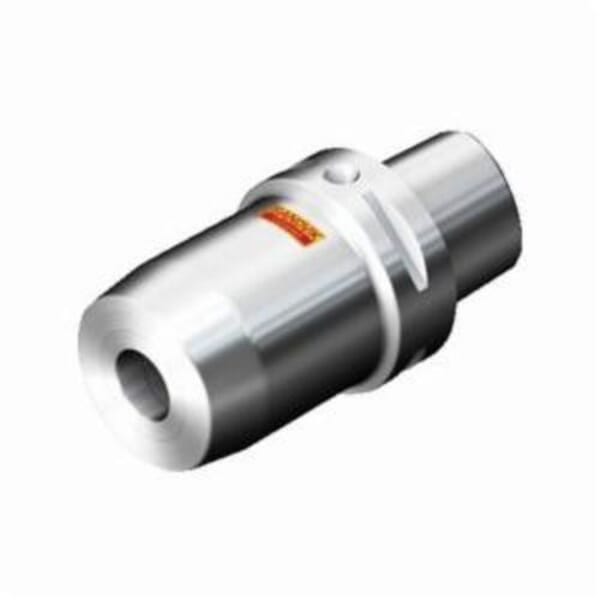

Sandvik Coromant 6255457 CoroChuck 930 Heavy Duty High Precision Hydraulic Tool Holder and Chuck, Coromant Capto Shank, C8 Connection, 0.984 in Dia Hole, 2.244 in Dia Nose, 3.819 in Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6255457 CoroChuck 930 Heavy Duty High Precision Hydraulic Tool Holder and Chuck, Coromant Capto Shank, C8 Connection, 0.984 in Dia Hole, 2.244 in Dia Nose, 3.819 in Projection

ManufacturerSandvik Coromant

Part #826255457

MFG #6255457

Sandvik Coromant Hydraulic Tool Holder and Chuck, Heavy Duty High Precision, Series: CoroChuck 930, C8 Connection, Coromant Capto Shank, 3.15 in Taper, 0.984 in Diameter Hole, 2.244 in Diameter Nose, 3.819 in Projection, 1.85 in Clamping Depth, 5.708 in Overall Length, System Size Machine Side: C8, ANSI Code: 930-C8-HD-25-097, ISO Code: 930-C8-HD-25-097, Yes Through Coolant

$1,341.98

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C8-HD-25-097

Clamping Depth: 1.85 in

Connection Size: C8

Country of Origin: DE

Hole Diameter: 0.984 in

ISO Code: 930-C8-HD-25-097

Manufacturer Name: Sandvik Coromant

Nose Diameter: 2.244 in

Overall Length: 5.708 in

Projection: 3.819 in

Series: CoroChuck 930

Shank Type: Coromant Capto

System Size Machine Side: C8

Taper Size: 3.15 in

Through Coolant (Yes/No): Yes

Type: Heavy Duty High Precision

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829082 Clamping Screw

For stable machining in milling and drilling applications

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C8-HD-25-097

Clamping Depth: 1.85 in

Connection Size: C8

Country of Origin: DE

Hole Diameter: 0.984 in

ISO Code: 930-C8-HD-25-097

Manufacturer Name: Sandvik Coromant

Nose Diameter: 2.244 in

Overall Length: 5.708 in

Projection: 3.819 in

Series: CoroChuck 930

Shank Type: Coromant Capto

System Size Machine Side: C8

Taper Size: 3.15 in

Through Coolant (Yes/No): Yes

Type: Heavy Duty High Precision

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5762949 Length Adjusting Screw, 5764228 Torque Wrench and 6829082 Clamping Screw

For stable machining in milling and drilling applications
