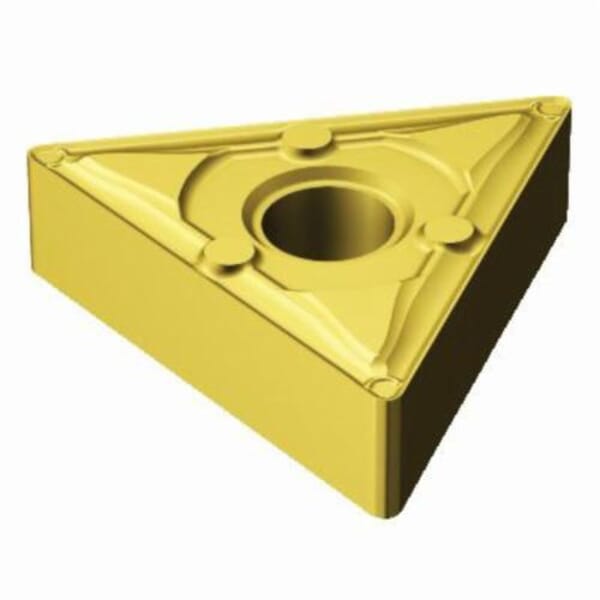

Sandvik Coromant 5754682 T-Max P Turning Insert, ANSI Code: TNMX 332-WF 1525, TNMX Insert, Material Grade: K, M, P, 332 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Stainless Steel and Steel, Carbide

ManufacturerSandvik Coromant

Part #826254682

MFG #5754682

Sandvik Coromant Turning Insert, Series: T-Max P, TNMX Insert, 332 Insert, Triangular, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6495 in Length, 16 Seat, Negative Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 1525, ANSI Code: TNMX 332-WF 1525, ISO Code: TNMX 16 04 08-WF 1525, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiCN+TiN Coated, Material Grade: K, M, P, For Use On: Cast Iron, Stainless Steel and Steel

$16.60

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: TNMX 332-WF 1525

Chipbreaker: WF

Corner Radius: 0.0312 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: PVD-TiCN+TiN Coated

For Use On: Cast Iron, Stainless Steel and Steel

Hole Diameter: 0.15 in

Included Angle: 60 deg

Inscribed Circle: 3/8 in

Insert Size: 332

Insert Style: TNMX

ISO Code: TNMX 16 04 08-WF 1525

Length: 0.6495 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1525

Material: Carbide

Material Grade: K, M, P

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Series: T-Max P

Shape: Triangular

Thickness: 0.1874 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, TNMX Insert, 332 Insert, Triangular, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6495 in Length, 16 Seat, Negative Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 1525, ANSI Code: TNMX 332-WF 1525, ISO Code: TNMX 16 04 08-WF 1525, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiCN+TiN Coated, Material Grade: K, M, P, For Use On: Cast Iron, Stainless Steel and Steel
