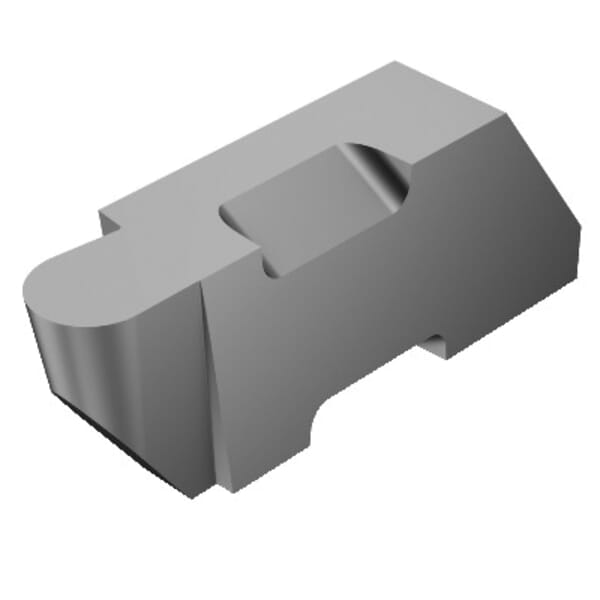

Sandvik Coromant 5753405 Top-Lok Profiling Insert, ANSI Code: TLR-3062R H13A, TLR Insert, 3062 Insert, Material Grade: K, M, N, S, 0.15 in Max Depth of Cut, Manufacturers Grade: H13A

ManufacturerSandvik Coromant

Part #826253405

MFG #5753405

Sandvik Coromant Profiling Insert, Series: Top-Lok, TLR Insert, 3062 Insert, 0.15 in Maximum Depth of Cut, 0.344 in Thickness, 0.195 in Width, 0.6338 in Length, ANSI Code: TLR-3062R H13A, 0.062 in Corner Radius, Manufacturers Grade: H13A, 10 deg Relief Angle, Right Hand, Carbide, Uncoated, Material Grade: K, M, N, S

$40.72

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: TLR-3062R H13A

Corner Radius: 0.062 in

Country of Origin: US

Finish: Uncoated

Hand of Insert: Right

Insert Size: 3062

Insert Style: TLR

Length: 0.6338 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Grade: K, M, N, S

Maximum Depth of Cut: 0.15 in

Relief Angle: 10 deg

Series: Top-Lok

Thickness: 0.344 in

Width: 0.195 in

Multiply operations with the same holder by just changing insert
Double-ended inserts provide high edge security
Interchangeable with similar clamping systems by changing the top clamp and screw

The flexible Top-Lok clamping system locks the insert against both the back and side of the pocket, while at the same time pulls the insert down into the pocket. This provides for clamping integrity axially and radially.

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: TLR-3062R H13A

Corner Radius: 0.062 in

Country of Origin: US

Finish: Uncoated

Hand of Insert: Right

Insert Size: 3062

Insert Style: TLR

Length: 0.6338 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Grade: K, M, N, S

Maximum Depth of Cut: 0.15 in

Relief Angle: 10 deg

Series: Top-Lok

Thickness: 0.344 in

Width: 0.195 in

Multiply operations with the same holder by just changing insert
Double-ended inserts provide high edge security
Interchangeable with similar clamping systems by changing the top clamp and screw
