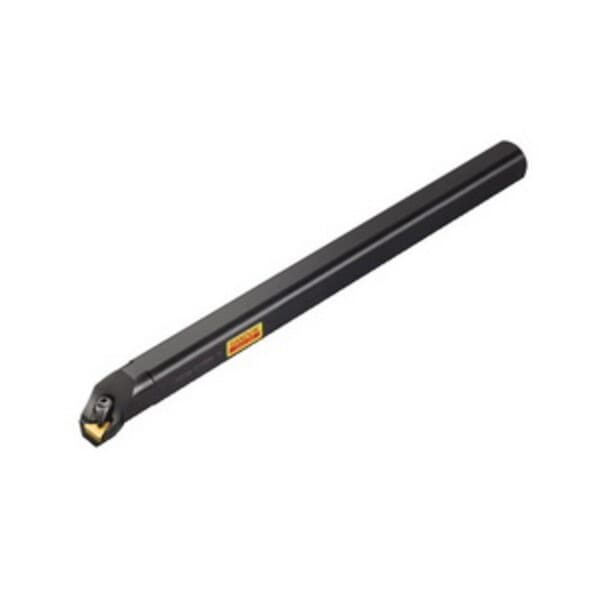

Sandvik Coromant 5752510 T-Max S Indexable Boring Bar, S..CTFPL Toolholder, 1.26 in Dia Min Bore, Left Hand of Holder, 11.811 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5752510 T-Max S Indexable Boring Bar, S..CTFPL Toolholder, 1.26 in Dia Min Bore, Left Hand of Holder, 11.811 in OAL

ManufacturerSandvik Coromant

Part #826252510

MFG #5752510

Sandvik Coromant Indexable Boring Bar, Series: T-Max S, 1.26 in Minimum Bore, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.984 in Shank Diameter, Cylindrical with 3-Flat Shank, Left Hand of Holder, S..CTFPL Toolholder, Insert Compatibility: TPUN 16 03 08, Triangle Insert, 3/8 in Inscribed Circle, 1/8 in Insert Thickness, Steel, No Through Coolant

$312.68

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: IN

Hand of Holder: Left

Inscribed Circle: 3/8 in

Insert Compatibility: TPUN 16 03 08

Insert Shape: Triangle

Insert Thickness: 1/8 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 3.937 in

Minimum Bore Diameter: 1.26 in

Overall Length: 11.811 in

Series: T-Max S

Shank Diameter: 0.984 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): No

Toolholder Type: S..CTFPL

49 to 100 mm overhang
300 mm L functional
17 mm W functional
91 deg tool cutting edge
0 deg body workpiece side/machine side
0 deg ramping
-1 deg tool lead
5 Nm torque
23 mm H shank
No coolant exit
Without coolant entry
ISO Code: S25T-CTFPL 16
ANSI Code: S25T-CTFPL 16
20 life cycle state

Turning Applications

Manufacturer Name: Sandvik Coromant

Country of Origin: IN

Hand of Holder: Left

Inscribed Circle: 3/8 in

Insert Compatibility: TPUN 16 03 08

Insert Shape: Triangle

Insert Thickness: 1/8 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 3.937 in

Minimum Bore Diameter: 1.26 in

Overall Length: 11.811 in

Series: T-Max S

Shank Diameter: 0.984 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): No

Toolholder Type: S..CTFPL

49 to 100 mm overhang
300 mm L functional
17 mm W functional
91 deg tool cutting edge
0 deg body workpiece side/machine side
0 deg ramping
-1 deg tool lead
5 Nm torque
23 mm H shank
No coolant exit
Without coolant entry
ISO Code: S25T-CTFPL 16
ANSI Code: S25T-CTFPL 16
20 life cycle state

Turning Applications
