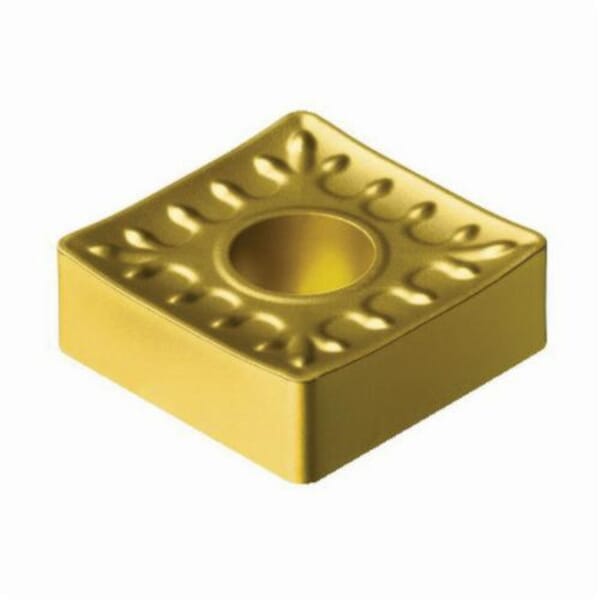

Sandvik Coromant 5751000 T-Max P Turning Insert, ANSI Code: SNMM 643-QR 235, SNMM Insert, Material Grade: M, P, 643 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: 235

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5751000 T-Max P Turning Insert, ANSI Code: SNMM 643-QR 235, SNMM Insert, Material Grade: M, P, 643 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: 235

ManufacturerSandvik Coromant

Part #826251000

MFG #5751000

Sandvik Coromant Turning Insert, Series: T-Max P, SNMM Insert, 643 Insert, Squared, 0.472 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, QR Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 235, ANSI Code: SNMM 643-QR 235, ISO Code: SNMM 19 06 12-QR 235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

$36.30

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: SNMM 643-QR 235
Chipbreaker: QR
Corner Radius: 0.047 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+TiN Coated
For Use On: Stainless Steel and Steel
Hole Diameter: 0.312 in
Included Angle: 90 deg
Inscribed Circle: 3/4 in
Insert Size: 643
Insert Style: SNMM
ISO Code: SNMM 19 06 12-QR 235
Length: 3/4 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 235
Material: Carbide
Material Grade: M, P
Maximum Depth of Cut: 0.472 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 19
Series: T-Max P
Shape: Squared
Thickness: 1/4 in
Width: 3/4 in
: Sandvik Coromant Turning Insert, Series: T-Max P, SNMM Insert, 643 Insert, Squared, 0.472 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, QR Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 235, ANSI Code: SNMM 643-QR 235, ISO Code: SNMM 19 06 12-QR 235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: SNMM 643-QR 235
Chipbreaker: QR
Corner Radius: 0.047 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+TiN Coated
For Use On: Stainless Steel and Steel
Hole Diameter: 0.312 in
Included Angle: 90 deg
Inscribed Circle: 3/4 in
Insert Size: 643
Insert Style: SNMM
ISO Code: SNMM 19 06 12-QR 235
Length: 3/4 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 235
Material: Carbide
Material Grade: M, P
Maximum Depth of Cut: 0.472 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 19
Series: T-Max P
Shape: Squared
Thickness: 1/4 in
Width: 3/4 in
: Sandvik Coromant Turning Insert, Series: T-Max P, SNMM Insert, 643 Insert, Squared, 0.472 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, QR Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 235, ANSI Code: SNMM 643-QR 235, ISO Code: SNMM 19 06 12-QR 235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
: SDS
