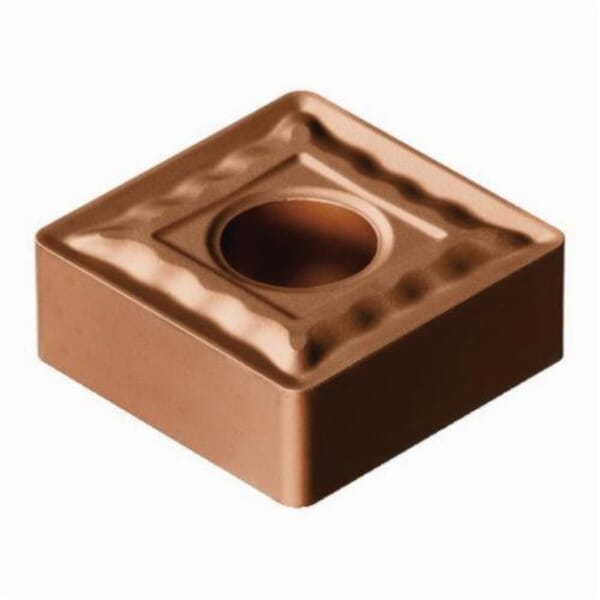

Sandvik Coromant 5750299 T-Max P Turning Insert, ANSI Code: SNMG 432-QM 1115, SNMG Insert, Material Grade: M, S, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat-Resistant Super Alloys and Titanium

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5750299 T-Max P Turning Insert, ANSI Code: SNMG 432-QM 1115, SNMG Insert, Material Grade: M, S, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat-Resistant Super Alloys and Titanium

ManufacturerSandvik Coromant

Part #826250299

MFG #5750299

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 432 Insert, Squared, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: SNMG 432-QM 1115, ISO Code: SNMG 12 04 08-QM 1115, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat-Resistant Super Alloys and Titanium

$18.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: SNMG 432-QM 1115

Chipbreaker: QM

Corner Radius: 0.0312 in

Country of Origin: JP

Cutting Direction: Neutral

Finish: PVD-TiAlN+AlCr2O3 Coated

For Use On: Stainless Steel, Heat-Resistant Super Alloys and Titanium

Hole Diameter: 0.2029 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SNMG

ISO Code: SNMG 12 04 08-QM 1115

Length: 1/2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1115

Material: Carbide

Material Grade: M, S

Maximum Depth of Cut: 6 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Series: T-Max P

Shape: Squared

Thickness: 0.187 in

Width: 1/2 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 432 Insert, Squared, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: SNMG 432-QM 1115, ISO Code: SNMG 12 04 08-QM 1115, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat-Resistant Super Alloys and Titanium

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: SNMG 432-QM 1115

Chipbreaker: QM

Corner Radius: 0.0312 in

Country of Origin: JP

Cutting Direction: Neutral

Finish: PVD-TiAlN+AlCr2O3 Coated

For Use On: Stainless Steel, Heat-Resistant Super Alloys and Titanium

Hole Diameter: 0.2029 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SNMG

ISO Code: SNMG 12 04 08-QM 1115

Length: 1/2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1115

Material: Carbide

Material Grade: M, S

Maximum Depth of Cut: 6 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Series: T-Max P

Shape: Squared

Thickness: 0.187 in

Width: 1/2 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 432 Insert, Squared, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: SNMG 432-QM 1115, ISO Code: SNMG 12 04 08-QM 1115, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat-Resistant Super Alloys and Titanium

SDS
