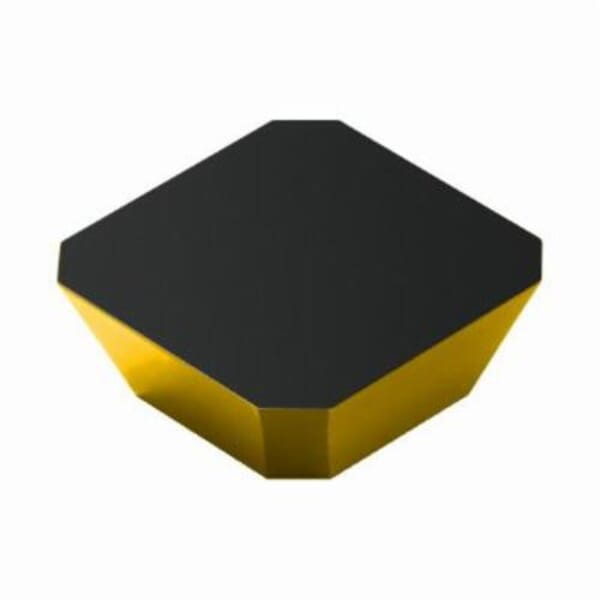

Sandvik Coromant 5749671 ModulMill T-Max Milling Insert, ANSI Code: SEK 53A 4230, SEKN Insert, 1204 Insert, Carbide, Manufacturers Grade: 4230, Squared Shape, Material Grade: K, P

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5749671 ModulMill T-Max Milling Insert, ANSI Code: SEK 53A 4230, SEKN Insert, 1204 Insert, Carbide, Manufacturers Grade: 4230, Squared Shape, Material Grade: K, P

ManufacturerSandvik Coromant

Part #826249671

MFG #5749671

Sandvik Coromant Milling Insert, Series: ModulMill T-Max, SEKN Insert, 1204 Insert, Squared, 5/8 in Inscribed Circle, 0.1874 in Thickness, 5/8 in Width, 5/8 in Length, AZ Chipbreaker, 0.059 in Corner Radius, Positive Rake, 45 deg Lead Angle, Manufacturers Grade: 4230, ANSI Code: SEK 53A 4230, ISO Code: SEKN 15 04 AZ 4230, Neutral Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, Cast Iron and Steel Material Application

$35.75

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: SEK 53A 4230
Chipbreaker: AZ
Corner Radius: 0.059 in
Country of Origin: JP
Finish: CVD-TiCN+Al2O3+TiN Coated
Hand of Insert: Neutral
Inscribed Circle: 5/8 in
Insert Size: 1204
Insert Style: SEKN
ISO Code: SEKN 15 04 AZ 4230
Lead Angle: 45 deg
Length: 5/8 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4230
Material: Carbide
Material Application: Cast Iron and Steel
Material Grade: K, P
Rake: Positive
Series: ModulMill T-Max
Shape: Squared
Thickness: 0.1874 in
Width: 5/8 in
: Medium Duty Applications
