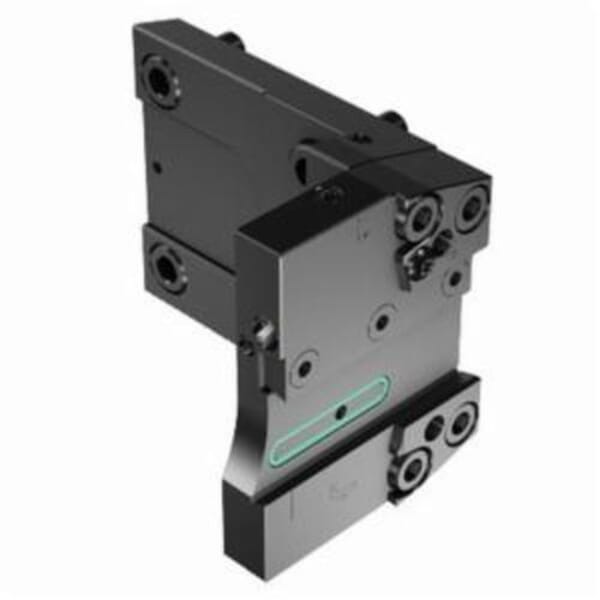

Sandvik Coromant 6749550 Left Hand Adapter, ANSI Code: APBL-BT65A-25-HP, BMT Turret Interface x Blade Shank, 3.2677 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6749550 Left Hand Adapter, ANSI Code: APBL-BT65A-25-HP, BMT Turret Interface x Blade Shank, 3.2677 in OAL

ManufacturerSandvik Coromant

Part #826249550

MFG #6749550

Sandvik Coromant Adapter, Left Hand, 3.2677 in Overall Length, BMT Turret Interface x Blade Shank, ANSI Code: APBL-BT65A-25-HP, ISO Code: APBL-BT65A-25-HP, Steel

$2,126.73

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: APBL-BT65A-25-HP

Country of Origin: DE

ISO Code: APBL-BT65A-25-HP

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 3.2677 in

Shank Type: BMT Turret Interface x Blade

Type: Left Hand

5431 115-09 Wedge, 5513 015-12, 3212 010-411, 3212 100-306, 3212 010-511 Screw, 5691 034-01 Nozzle, 3111 050-609 Parallel Pin, 5333 011-01 Eccentric and 5641 005-100 O-Ring

BMT non-driven turret interface -size BT65A machine side adaptive interface
Parting off and grooving blade -size 25L workpiece side adaptive interface
0 deg body workpiece side
Decentral over flange and axial coolant entry
80 bar coolant
Radial coolant exit
25 mm H functional
83 mm L functional
100 mm H
126 mm W
APBR/L-BT-HP tool style
70.5 mm W functional
20 life cycle state

5431 115-09 Wedge, 5513 015-12, 3212 010-411, 3212 100-306, 3212 010-511 Screw, 5691 034-01 Nozzle, 3111 050-609 Parallel Pin, 5333 011-01 Eccentric and 5641 005-100 O-Ring

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: APBL-BT65A-25-HP

Country of Origin: DE

ISO Code: APBL-BT65A-25-HP

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 3.2677 in

Shank Type: BMT Turret Interface x Blade

Type: Left Hand

5431 115-09 Wedge, 5513 015-12, 3212 010-411, 3212 100-306, 3212 010-511 Screw, 5691 034-01 Nozzle, 3111 050-609 Parallel Pin, 5333 011-01 Eccentric and 5641 005-100 O-Ring

BMT non-driven turret interface -size BT65A machine side adaptive interface
Parting off and grooving blade -size 25L workpiece side adaptive interface
0 deg body workpiece side
Decentral over flange and axial coolant entry
80 bar coolant
Radial coolant exit
25 mm H functional
83 mm L functional
100 mm H
126 mm W
APBR/L-BT-HP tool style
70.5 mm W functional
20 life cycle state

5431 115-09 Wedge, 5513 015-12, 3212 010-411, 3212 100-306, 3212 010-511 Screw, 5691 034-01 Nozzle, 3111 050-609 Parallel Pin, 5333 011-01 Eccentric and 5641 005-100 O-Ring

Catalog
