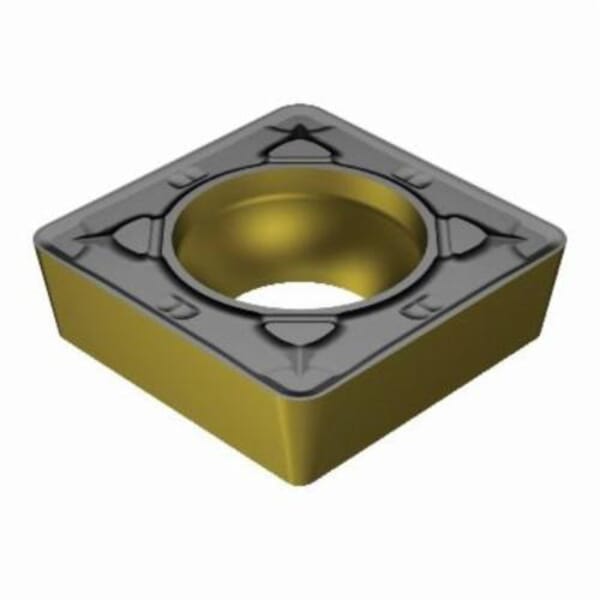

Sandvik Coromant 5749448 CoroTurn 107 Turning Insert, ANSI Code: SCMT 433-KR 3205, SCMT Insert, Material Grade: K, 433 Insert, Squared Shape, 12 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3205

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5749448 CoroTurn 107 Turning Insert, ANSI Code: SCMT 433-KR 3205, SCMT Insert, Material Grade: K, 433 Insert, Squared Shape, 12 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3205

ManufacturerSandvik Coromant

Part #826249448

MFG #5749448

Sandvik Coromant Turning Insert, Series: CoroTurn 107, SCMT Insert, 433 Insert, Squared, 4.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Positive Rake, KR Chipbreaker, 0.0468 in Corner Radius, 0.2165 in Hole Dia, Manufacturers Grade: 3205, ANSI Code: SCMT 433-KR 3205, ISO Code: SCMT 12 04 12-KR 3205, 90 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

$21.45

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: SCMT 433-KR 3205

Chipbreaker: KR

Corner Radius: 0.0468 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron

Hole Diameter: 0.2165 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: SCMT

ISO Code: SCMT 12 04 12-KR 3205

Length: 1/2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3205

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 4.8 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 12

Series: CoroTurn 107

Shape: Squared

Thickness: 0.187 in

Width: 1/2 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
40 to 60 deg countersunk hole and non-flat surface

Roughing Applications

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: SCMT 433-KR 3205

Chipbreaker: KR

Corner Radius: 0.0468 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron

Hole Diameter: 0.2165 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: SCMT

ISO Code: SCMT 12 04 12-KR 3205

Length: 1/2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3205

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 4.8 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 12

Series: CoroTurn 107

Shape: Squared

Thickness: 0.187 in

Width: 1/2 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
40 to 60 deg countersunk hole and non-flat surface

Roughing Applications

SDS
