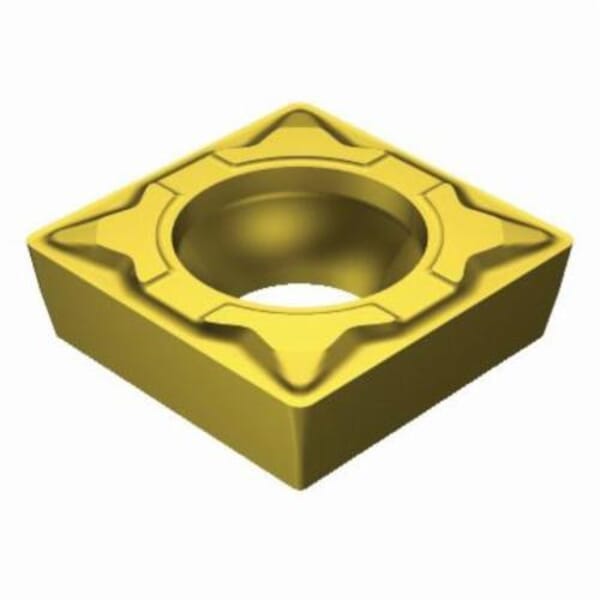

Sandvik Coromant 5749002 CoroTurn 107 Turning Insert, ANSI Code: SCMT 3(2.5)2-MF 2025, SCMT Insert, Material Grade: M, 3(2.5)2 Insert, Squared Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: 2025

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5749002 CoroTurn 107 Turning Insert, ANSI Code: SCMT 3(2.5)2-MF 2025, SCMT Insert, Material Grade: M, 3(2.5)2 Insert, Squared Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: 2025

ManufacturerSandvik Coromant

Part #826249002

MFG #5749002

Sandvik Coromant Turning Insert, Series: CoroTurn 107, SCMT Insert, 3(2.5)2 Insert, Squared, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 3/8 in Width, 3/8 in Length, 09 Seat, Positive Rake, MF Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 2025, ANSI Code: SCMT 3(2.5)2-MF 2025, ISO Code: SCMT 09 T3 08-MF 2025, 90 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

$14.77

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: SCMT 3(2.5)2-MF 2025

Chipbreaker: MF

Corner Radius: 0.0312 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Stainless Steel

Hole Diameter: 0.1732 in

Included Angle: 90 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)2

Insert Style: SCMT

ISO Code: SCMT 09 T3 08-MF 2025

Length: 3/8 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 2025

Material: Carbide

Material Grade: M

Maximum Depth of Cut: 2 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Squared

Thickness: 0.156 in

Width: 3/8 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
40 to 60 deg countersunk hole and non-flat surface

Finishing Applications

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: SCMT 3(2.5)2-MF 2025

Chipbreaker: MF

Corner Radius: 0.0312 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Stainless Steel

Hole Diameter: 0.1732 in

Included Angle: 90 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)2

Insert Style: SCMT

ISO Code: SCMT 09 T3 08-MF 2025

Length: 3/8 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 2025

Material: Carbide

Material Grade: M

Maximum Depth of Cut: 2 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Squared

Thickness: 0.156 in

Width: 3/8 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
40 to 60 deg countersunk hole and non-flat surface

Finishing Applications

SDS
