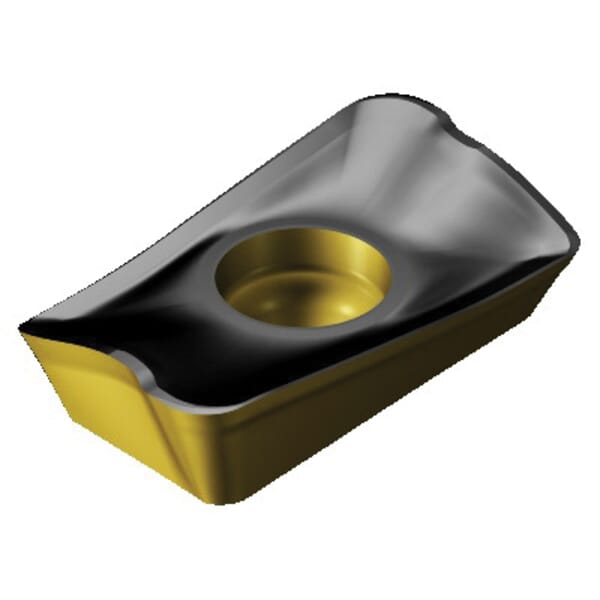

Sandvik Coromant 5746843 CoroMill 390 Milling Insert, ANSI Code: R390-17 04 08M-PH 4220, R390..M-PH Insert, 170408 Insert, Carbide, Manufacturers Grade: 4220, Rectangle Shape, Material Grade: K, P

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5746843 CoroMill 390 Milling Insert, ANSI Code: R390-17 04 08M-PH 4220, R390..M-PH Insert, 170408 Insert, Carbide, Manufacturers Grade: 4220, Rectangle Shape, Material Grade: K, P

ManufacturerSandvik Coromant

Part #826246843

MFG #5746843

Sandvik Coromant Milling Insert, Series: CoroMill 390, R390..M-PH Insert, 170408 Insert, Rectangle Shape, 0.378 in Inscribed Circle, 0.187 in Thickness, 0.378 in Width, 0.687 in Length, PH Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Diameter Hole, Manufacturers Grade: 4220, ANSI Code: R390-17 04 08M-PH 4220, ISO Code: R390-17 04 08M-PH 4220, Right Hand of Insert, Carbide, MTCVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, Cast Iron and Steel Material Application

$28.12

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: R390-17 04 08M-PH 4220
Chipbreaker: PH
Corner Radius: 0.031 in
Country of Origin: SE
Finish: MTCVD-TiCN+Al2O3+TiN Coated
Hand of Insert: Right
Hole Diameter: 0.1614 in
Inscribed Circle: 0.378 in
Insert Size: 170408
Insert Style: R390..M-PH
ISO Code: R390-17 04 08M-PH 4220
Lead Angle: 90 deg
Length: 0.687 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4220
Material: Carbide
Material Application: Cast Iron and Steel
Material Grade: K, P
Rake: Positive
Series: CoroMill 390
Shape: Rectangle
Thickness: 0.187 in
Width: 0.378 in
: Shoulder Milling, Repeated Shoulder Milling, Turn Milling, Deep Shoulder Milling, Edging, Pocketing, Linear and Helical Ramping
