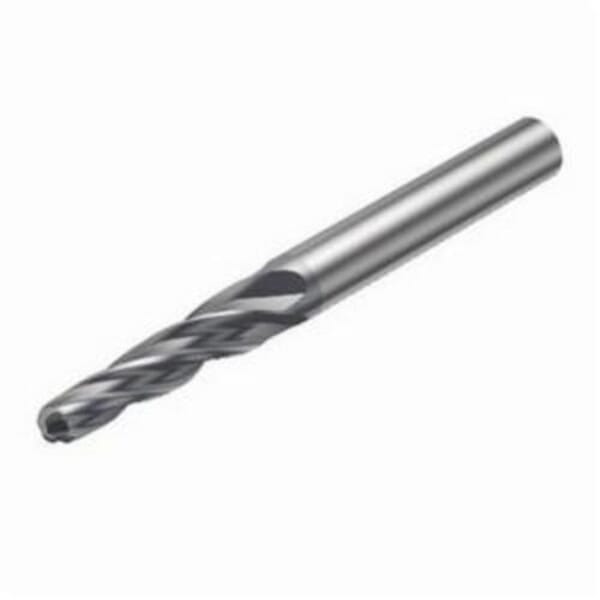

Sandvik Coromant 5743598 CoroMill Plura Ball Nose Conical End Mill, 0.314 in Dia Cutter, 1.574 in Length of Cut, 4 Flutes, 0.472 in Dia Shank, 3.937 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826243598

MFG #5743598

Sandvik Coromant End Mill, Ball Nose Conical, Series: CoroMill Plura, 0.314 in Cutter Dia, 3.937 in Overall Length, 1.574 in Length of Cut, 4 Flutes, 0.472 in Shank Dia, Right Hand Cutting, 40 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.54-08040RAL40G 1620, ISO Code: R216.54-08040RAL40G 1620, Solid Carbide, PVD Coated

$211.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.54-08040RAL40G 1620

Country of Origin: DE

Cutter Diameter: 0.314 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 40 deg

ISO Code: R216.54-08040RAL40G 1620

Length of Cut: 1.574 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.472 in

Shank Type: Cylindrical

Type: Ball Nose Conical

1620 manufacturer grade
4 face effective cutt edge
3 deg body half taper
Straight chip breaker
40.55 mm L body
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right hand helix flute
2 deg radial rake
14 deg axial rake
40 mm L usable
52 mm overhang
3 deg lead
4 mm corner radius
15 deg ramping
80000 r/min
20 life cycle state
Optimized grades for all materials and conditions
Straight, conical, with and without chip-dividing cutting edge tool shapes

Pre-Machining and Finishing

DIN1835-A|DIN6535-HA
