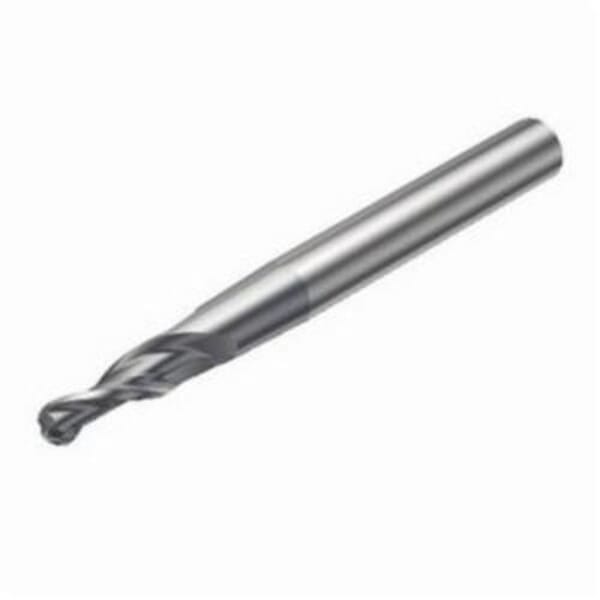

Sandvik Coromant 5743549 CoroMill Plura Ball Nose Conical End Mill, 0.235 in Dia Cutter, 0.472 in Length of Cut, 2 Flutes, 0.393 in Dia Shank, 3.937 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5743549 CoroMill Plura Ball Nose Conical End Mill, 0.235 in Dia Cutter, 0.472 in Length of Cut, 2 Flutes, 0.393 in Dia Shank, 3.937 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826243549

MFG #5743549

Sandvik Coromant End Mill, Ball Nose Conical, Series: CoroMill Plura, 0.235 in Diameter Cutter, 3.937 in Overall Length, 0.472 in Length of Cut, 2 Flutes, 0.393 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.52-06040RAL12G 1630, ISO Code: R216.52-06040RAL12G 1630, Solid Carbide, PVD Coated

$158.67

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.52-06040RAL12G 1630

Country of Origin: DE

Cutter Diameter: 0.235 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 40 deg

ISO Code: R216.52-06040RAL12G 1630

Length of Cut: 0.472 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Cylindrical

Type: Ball Nose Conical

1630 manufacturer grade
2 face effective cutt edge
3 deg body half taper
Straight chip breaker
43.9 mm L body
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right hand helix flute
2 deg radial rake
14 deg axial rake
12 mm L usable
64 mm overhang
3 deg lead
3 mm corner radius
15 deg ramping
80000 r/min
20 life cycle state
Optimized grades for all materials and conditions
Straight, conical, with and without chip-dividing cutting edge tool shapes

Pre-Machining and Finishing

DIN1835-A|DIN6535-HA

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.52-06040RAL12G 1630

Country of Origin: DE

Cutter Diameter: 0.235 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 40 deg

ISO Code: R216.52-06040RAL12G 1630

Length of Cut: 0.472 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Cylindrical

Type: Ball Nose Conical

1630 manufacturer grade
2 face effective cutt edge
3 deg body half taper
Straight chip breaker
43.9 mm L body
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right hand helix flute
2 deg radial rake
14 deg axial rake
12 mm L usable
64 mm overhang
3 deg lead
3 mm corner radius
15 deg ramping
80000 r/min
20 life cycle state
Optimized grades for all materials and conditions
Straight, conical, with and without chip-dividing cutting edge tool shapes

Pre-Machining and Finishing

DIN1835-A|DIN6535-HA

Catalog

SDS
