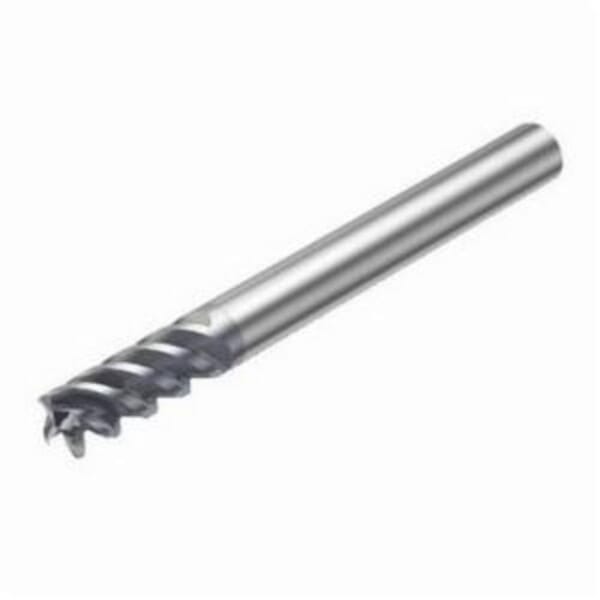

Sandvik Coromant 5743269 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 4.527 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5743269 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 4.527 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826243269

MFG #5743269

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.629 in Diameter Cutter, 4.527 in Overall Length, 1.259 in Length of Cut, 4 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.34-16050-AK32H 1620, ISO Code: R216.34-16050-AK32H 1620, Solid Carbide, PVD Coated

$524.73

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.34-16050-AK32H 1620

Country of Origin: DE

Cutter Diameter: 0.629 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R216.34-16050-AK32H 1620

Length of Cut: 1.259 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 4.527 in

Series: CoroMill Plura

Shank Diameter: 0.629 in

Shank Type: Cylindrical

Type: Square

1620 manufacturer grade
1 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
10.4 mm Dia core at face
12.8 mm Dia core second flute
0.15 mm W corner chamfer
L cutting length
Without coolant entry
Cutting pitch differential
No coolant exit
15.7 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
-18.5 deg radial rake
1.5 deg axial rake
32 mm L usable
4 maximum regrinds
67 mm overhang
90 deg y-axis rot

DIN1835-A|DIN6535-HA

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.34-16050-AK32H 1620

Country of Origin: DE

Cutter Diameter: 0.629 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R216.34-16050-AK32H 1620

Length of Cut: 1.259 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 4.527 in

Series: CoroMill Plura

Shank Diameter: 0.629 in

Shank Type: Cylindrical

Type: Square

1620 manufacturer grade
1 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
10.4 mm Dia core at face
12.8 mm Dia core second flute
0.15 mm W corner chamfer
L cutting length
Without coolant entry
Cutting pitch differential
No coolant exit
15.7 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
-18.5 deg radial rake
1.5 deg axial rake
32 mm L usable
4 maximum regrinds
67 mm overhang
90 deg y-axis rot

DIN1835-A|DIN6535-HA

Catalog

SDS
