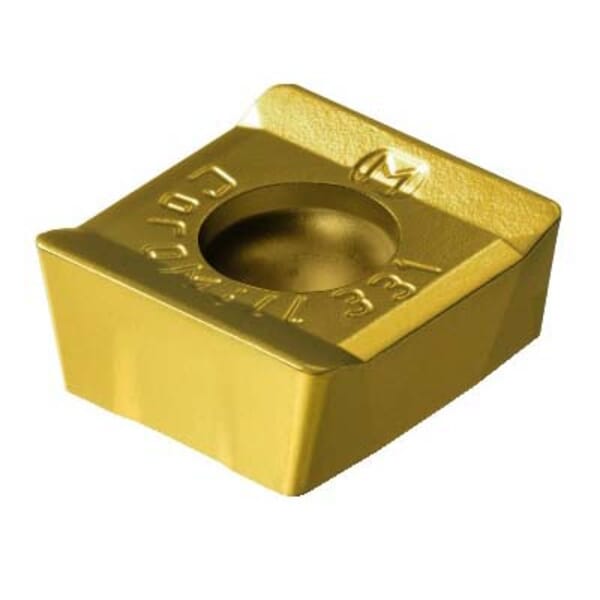

Sandvik Coromant 5739045 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05M-KM1020, N331.1A..M-KM Insert, 43505 Insert, Carbide, Manufacturers Grade: 1020, Rectangle Shape, Material Grade: K

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5739045 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05M-KM1020, N331.1A..M-KM Insert, 43505 Insert, Carbide, Manufacturers Grade: 1020, Rectangle Shape, Material Grade: K

ManufacturerSandvik Coromant

Part #826239045

MFG #5739045

Sandvik Coromant Milling Insert, Series: CoroMill 331, N331.1A..M-KM Insert, 43505 Insert, Rectangle Shape, 0.2 in Inscribed Circle, 0.138 in Thickness, 0.374 in Width, 0.2 in Length, KM Chipbreaker, 0.019 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1023 in Diameter Hole, Manufacturers Grade: 1020, ANSI Code: N331.1A-04 35 05M-KM1020, ISO Code: N331.1A-04 35 05M-KM1020, Neutral Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: K, Cast Iron Material Application

$17.67

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: N331.1A-04 35 05M-KM1020
Chipbreaker: KM
Corner Radius: 0.019 in
Country of Origin: SE
Finish: PVD-TiAlN Coated
Hand of Insert: Neutral
Hole Diameter: 0.1023 in
Inscribed Circle: 0.2 in
Insert Size: 43505
Insert Style: N331.1A..M-KM
ISO Code: N331.1A-04 35 05M-KM1020
Lead Angle: 90 deg
Length: 0.2 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1020
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Rake: Positive
Series: CoroMill 331
Shape: Rectangle
Thickness: 0.138 in
Width: 0.374 in
: Medium, Side and Face Milling Applications
: Catalog
SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: N331.1A-04 35 05M-KM1020
Chipbreaker: KM
Corner Radius: 0.019 in
Country of Origin: SE
Finish: PVD-TiAlN Coated
Hand of Insert: Neutral
Hole Diameter: 0.1023 in
Inscribed Circle: 0.2 in
Insert Size: 43505
Insert Style: N331.1A..M-KM
ISO Code: N331.1A-04 35 05M-KM1020
Lead Angle: 90 deg
Length: 0.2 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1020
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Rake: Positive
Series: CoroMill 331
Shape: Rectangle
Thickness: 0.138 in
Width: 0.374 in
: Medium, Side and Face Milling Applications
: Catalog
SDS
