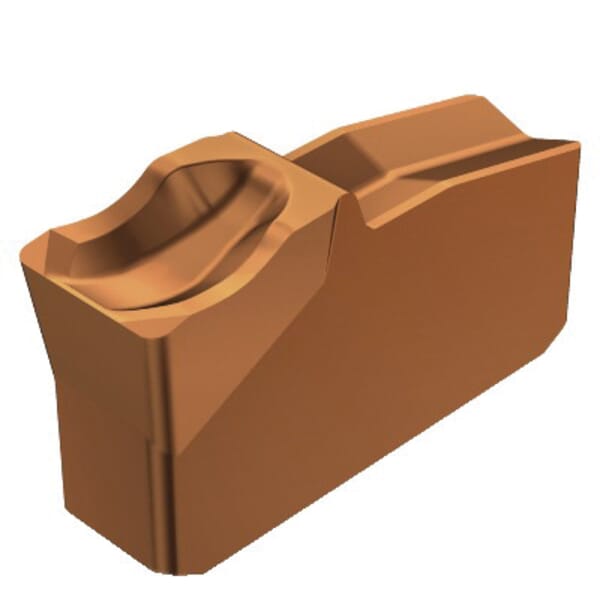

Sandvik Coromant 5738268 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-800-4E 1125, 80 N151.2 Insert, Material Grade: K, M, N, P, S, 0.315 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated

Product Line: Sandvik Coromant

MFG #: 5738268

Sandvik Coromant 5738268 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-800-4E 1125, 80 N151.2 Insert, Material Grade: K, M, N, P, S, 0.315 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated
Sandvik Coromant 5738268 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-800-4E 1125, 80 N151.2 Insert, Material Grade: K, M, N, P, S, 0.315 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated
Sandvik Coromant 5738268 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-800-4E 1125, 80 N151.2 Insert, Material Grade: K, M, N, P, S, 0.315 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated
Sandvik Coromant 5738268 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-800-4E 1125, 80 N151.2 Insert, Material Grade: K, M, N, P, S, 0.315 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated
Sandvik Coromant 5738268 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-800-4E 1125, 80 N151.2 Insert, Material Grade: K, M, N, P, S, 0.315 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated

Your Price

$34.68 / EA
Pack10/PK

Details

Part#826238268

Manufacturer:Sandvik Coromant

MFG #5738268

Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, N151.2 Insert, 80 Insert, 0.315 in Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, 0.4062 in Thickness, 0.444 in Length, 4E Chipbreaker, 0.024 in Corner Radius, Manufacturers Grade: 1125, ANSI Code: N151.2-800-4E 1125, ISO Code: N151.2-800-4E 1125, Neutral Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, M, N, P, S

Specifications

ANSI Code
N151.2-800-4E 1125
Chipbreaker
4E
Corner Radius
0.024 in
Country of Origin
US
Cutting Width
0.315 in
Finish
PVD-TiAlN Coated
Hand of Insert
Neutral
Insert Size
80
Insert Style
N151.2
ISO Code
N151.2-800-4E 1125
Lead Angle
0 deg
Lead Angle Direction
Neutral
Length
0.444 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
1125
Material
Carbide
Material Grade
K, M, N, P, S
Relief Angle
7 deg
Series
T-Max Q-Cut
Thickness
0.4062 in

Application

For pre-machining applications

Item Features

  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
  • For long overhangs and parting off big components

Documents

826238268

Sandvik Coromant 5738268 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-800-4E 1125, 80 N151.2 Insert, Material Grade: K, M, N, P, S, 0.315 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated

Description


Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, N151.2 Insert, 80 Insert, 0.315 in Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, 0.4062 in Thickness, 0.444 in Length, 4E Chipbreaker, 0.024 in Corner Radius, Manufacturers Grade: 1125, ANSI Code: N151.2-800-4E 1125, ISO Code: N151.2-800-4E 1125, Neutral Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, M, N, P, S

Product Number: 826238268

Manufacturer: Sandvik Coromant

Prasdsadice:

$34.68 / EA
Pack10/PK

MFG #: 5738268

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: N151.2-800-4E 1125

Chipbreaker: 4E

Corner Radius: 0.024 in

Country of Origin: US

Cutting Width: 0.315 in

Finish: PVD-TiAlN Coated

Hand of Insert: Neutral

Insert Size: 80

Insert Style: N151.2

ISO Code: N151.2-800-4E 1125

Lead Angle: 0 deg

Lead Angle Direction: Neutral

Length: 0.444 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.4062 in

Item Features

  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
  • For long overhangs and parting off big components
