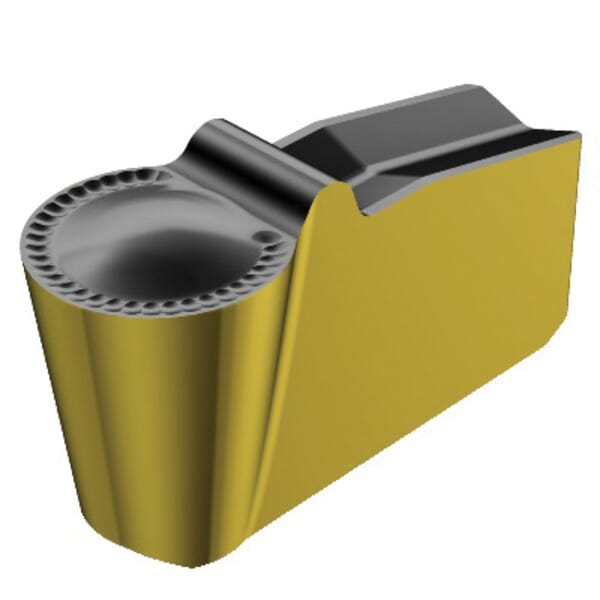

Sandvik Coromant 5738055 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-400-40-5P 4225, N151.2-5P Insert, 40 Insert, Material Grade: K, P, 0.0669 in Max Depth of Cut, Manufacturers Grade: 4225

Product Line: Sandvik Coromant

MFG #: 5738055

Sandvik Coromant 5738055 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-400-40-5P 4225, N151.2-5P Insert, 40 Insert, Material Grade: K, P, 0.0669 in Max Depth of Cut, Manufacturers Grade: 4225
Sandvik Coromant 5738055 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-400-40-5P 4225, N151.2-5P Insert, 40 Insert, Material Grade: K, P, 0.0669 in Max Depth of Cut, Manufacturers Grade: 4225
Sandvik Coromant 5738055 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-400-40-5P 4225, N151.2-5P Insert, 40 Insert, Material Grade: K, P, 0.0669 in Max Depth of Cut, Manufacturers Grade: 4225
Sandvik Coromant 5738055 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-400-40-5P 4225, N151.2-5P Insert, 40 Insert, Material Grade: K, P, 0.0669 in Max Depth of Cut, Manufacturers Grade: 4225
Sandvik Coromant 5738055 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-400-40-5P 4225, N151.2-5P Insert, 40 Insert, Material Grade: K, P, 0.0669 in Max Depth of Cut, Manufacturers Grade: 4225

Your Price

$25.18 / EA
Pack10/PK

Details

Part#826238055

Manufacturer:Sandvik Coromant

MFG #5738055

Sandvik Coromant Profiling Insert, Series: T-Max Q-Cut, N151.2-5P Insert, 40 Insert, 0.0669 in Maximum Depth of Cut, 0.3191 in Thickness, 5P Chipbreaker, ANSI Code: N151.2-400-40-5P 4225, 0.0787 in Corner Radius, Manufacturers Grade: 4225, Positive Rake, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P

Specifications

ANSI Code
N151.2-400-40-5P 4225
Chipbreaker
5P
Corner Radius
0.0787 in
Country of Origin
JP
Finish
MTCVD-TiCN+Al2O3+TiN Coated
Hand of Insert
Neutral
Insert Size
40
Insert Style
N151.2-5P
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
4225
Material
Carbide
Material Grade
K, P
Maximum Depth of Cut
0.0669 in
Rake
Positive
Relief Angle
7 deg
Series
T-Max Q-Cut
Thickness
0.3191 in

Application

Medium Feed Operation

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Large variety of widths
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability

Documents

826238055

Sandvik Coromant 5738055 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-400-40-5P 4225, N151.2-5P Insert, 40 Insert, Material Grade: K, P, 0.0669 in Max Depth of Cut, Manufacturers Grade: 4225

Description


Sandvik Coromant Profiling Insert, Series: T-Max Q-Cut, N151.2-5P Insert, 40 Insert, 0.0669 in Maximum Depth of Cut, 0.3191 in Thickness, 5P Chipbreaker, ANSI Code: N151.2-400-40-5P 4225, 0.0787 in Corner Radius, Manufacturers Grade: 4225, Positive Rake, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P

Product Number: 826238055

Manufacturer: Sandvik Coromant

Prasdsadice:

$25.18 / EA
Pack10/PK

MFG #: 5738055

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: N151.2-400-40-5P 4225

Chipbreaker: 5P

Corner Radius: 0.0787 in

Country of Origin: JP

Finish: MTCVD-TiCN+Al2O3+TiN Coated

Hand of Insert: Neutral

Insert Size: 40

Insert Style: N151.2-5P

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4225

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 0.0669 in

Rake: Positive

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.3191 in

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Large variety of widths
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
