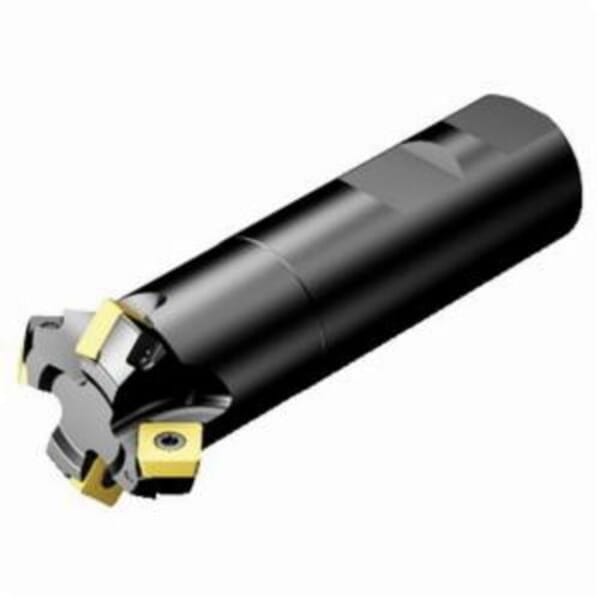

Sandvik Coromant 6536287 CoroMill 495 Chamfer Milling Cutter, 0.6857 in Dia Cutter Head, 2.8819 in OAL, Steel

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6536287 CoroMill 495 Chamfer Milling Cutter, 0.6857 in Dia Cutter Head, 2.8819 in OAL, Steel

ManufacturerSandvik Coromant

Part #826236287

MFG #6536287

Sandvik Coromant Chamfer Milling Cutter, Series: CoroMill 495, 0.6857 in Diameter Cutter Head, 2.8819 in Overall Length, Welded-On Shank, 5/8 in Shank Diameter, Right Hand Cutting Direction, 0.52 in Diameter Cutting, 0.304 in Length of Cut, Steel

$448.95

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Cutter Head Diameter: 0.6857 in

Cutting Diameter: 0.52 in

Cutting Direction: Right Hand

Length of Cut: 0.304 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 2.8819 in

Series: CoroMill 495

Shank Diameter: 5/8 in

Shank Type: Welded-On

5763195 Insert Screw, 5764175 Bit and 5764191 Torque Wrench

Weldon (DIN1835-B / DIN6535-HB) machine side adaptive interface
14.276 mm Dia body
1 cutting item
Axial concentric coolant entry
20 bar coolant
40 - 60 deg insert screw clamping interface
14.22 mm H shank
15 - 75 deg cutting edge
19.497 mm Dia body
20 life cycle state
73.201 mm L functional
495-09T3M-XL compatible insert
20.5 mm overhang
13600 r/min
1.4 Nm torque
A495..Mxx tool style
1 effective cutting edge

5763195 Insert Screw, 5764175 Bit and 5764191 Torque Wrench

Catalog

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Cutter Head Diameter: 0.6857 in

Cutting Diameter: 0.52 in

Cutting Direction: Right Hand

Length of Cut: 0.304 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 2.8819 in

Series: CoroMill 495

Shank Diameter: 5/8 in

Shank Type: Welded-On

5763195 Insert Screw, 5764175 Bit and 5764191 Torque Wrench

Weldon (DIN1835-B / DIN6535-HB) machine side adaptive interface
14.276 mm Dia body
1 cutting item
Axial concentric coolant entry
20 bar coolant
40 - 60 deg insert screw clamping interface
14.22 mm H shank
15 - 75 deg cutting edge
19.497 mm Dia body
20 life cycle state
73.201 mm L functional
495-09T3M-XL compatible insert
20.5 mm overhang
13600 r/min
1.4 Nm torque
A495..Mxx tool style
1 effective cutting edge

5763195 Insert Screw, 5764175 Bit and 5764191 Torque Wrench

Catalog
