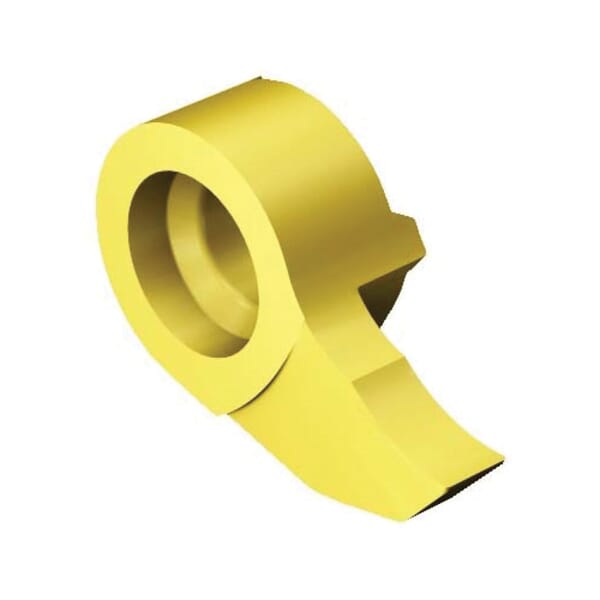

Sandvik Coromant 5735736 CoroCut MB Grooving Head, ANSI Code: MB-09G200-02-14R 1025, MB Insert, 09 Insert, Right Hand Cutting, 0.079 in W Cutting, Manufacturers Grade: 1025, PVD-TiAlN+TiN Coated, Material Grade: M, N, O, P, S

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5735736 CoroCut MB Grooving Head, ANSI Code: MB-09G200-02-14R 1025, MB Insert, 09 Insert, Right Hand Cutting, 0.079 in W Cutting, Manufacturers Grade: 1025, PVD-TiAlN+TiN Coated, Material Grade: M, N, O, P, S

ManufacturerSandvik Coromant

Part #826235736

MFG #5735736

Sandvik Coromant Grooving Head, Series: CoroCut MB, MB Insert, 09 Insert, 0.079 in Cutting Width, 0.157 in Maximum Depth of Cut, 90 deg Lead Angle, 0.008 in Corner Radius, Positive Rake, 0.3543 in Thickness, 0.2362 in Length, Manufacturers Grade: 1025, ANSI Code: MB-09G200-02-14R 1025, ISO Code: MB-09G200-02-14R 1025, Right Hand Cutting, Solid Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, N, O, P, S

$34.62

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: MB-09G200-02-14R 1025

Corner Radius: 0.008 in

Country of Origin: FR

Cutting Direction: Right Hand

Cutting Width: 0.079 in

Finish: PVD-TiAlN+TiN Coated

Insert Size: 09

Insert Style: MB

ISO Code: MB-09G200-02-14R 1025

Lead Angle: 90 deg

Length: 0.2362 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1025

Material: Solid Carbide

Material Grade: M, N, O, P, S

Maximum Depth of Cut: 0.157 in

Rake: Positive

Series: CoroCut MB

Thickness: 0.3543 in

Vibration free machining
Fast set up for both tool and insert
Stable high precision interface between interface and tool holder
Front mounted exchangeable cutting tool
Sharp cutting edges
Geometries and grades for all materials
Carbide shanks for long overhangs
Easy fix clamping
Grooving tools in a large variety of widths and corner radii also for standardized grooves such as o-rings and circlip grooves
Finish and precision machining at low feeds and speeds
Dedicated face grooving holder with nozzles for high precision coolant

Thread Turning, Turning, Back Boring, Face Grooving, Profiling and Pre-Parting Operation

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: MB-09G200-02-14R 1025

Corner Radius: 0.008 in

Country of Origin: FR

Cutting Direction: Right Hand

Cutting Width: 0.079 in

Finish: PVD-TiAlN+TiN Coated

Insert Size: 09

Insert Style: MB

ISO Code: MB-09G200-02-14R 1025

Lead Angle: 90 deg

Length: 0.2362 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1025

Material: Solid Carbide

Material Grade: M, N, O, P, S

Maximum Depth of Cut: 0.157 in

Rake: Positive

Series: CoroCut MB

Thickness: 0.3543 in

Vibration free machining
Fast set up for both tool and insert
Stable high precision interface between interface and tool holder
Front mounted exchangeable cutting tool
Sharp cutting edges
Geometries and grades for all materials
Carbide shanks for long overhangs
Easy fix clamping
Grooving tools in a large variety of widths and corner radii also for standardized grooves such as o-rings and circlip grooves
Finish and precision machining at low feeds and speeds
Dedicated face grooving holder with nozzles for high precision coolant

Thread Turning, Turning, Back Boring, Face Grooving, Profiling and Pre-Parting Operation

Catalog

SDS
