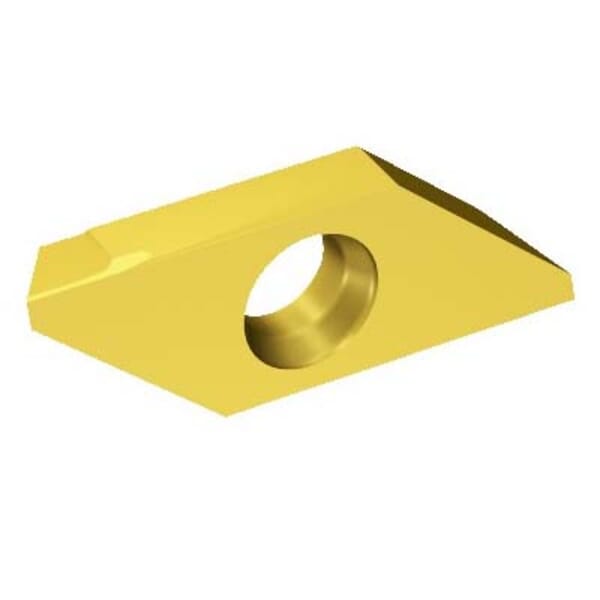

Sandvik Coromant 5735409 CoroCut XS 2-Sided Turning Insert, ANSI Code: MAFR 3 020 1025, MAFR Insert, Material Grade: K, M, N, P, S, 3020 Insert, Parallelogram Shape, 3 Seat, Positive Rake, Right Hand Cutting, Carbide, Manufacturers Grade: 1025

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5735409 CoroCut XS 2-Sided Turning Insert, ANSI Code: MAFR 3 020 1025, MAFR Insert, Material Grade: K, M, N, P, S, 3020 Insert, Parallelogram Shape, 3 Seat, Positive Rake, Right Hand Cutting, Carbide, Manufacturers Grade: 1025

ManufacturerSandvik Coromant

Part #826235409

MFG #5735409

Sandvik Coromant Turning Insert, 2-Sided, Series: CoroCut XS, MAFR Insert, 3020 Insert, Parallelogram, 0.236 in Maximum Depth of Cut, 1/8 in Thickness, 3 Seat, Positive Rake, MA Chipbreaker, 0.008 in Corner Radius, Manufacturers Grade: 1025, ANSI Code: MAFR 3 020 1025, ISO Code: MAFR 3 020 1025, 6 deg Relief Angle, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: K, M, N, P, S, For Use On: Cast Iron, Heat-Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel

$60.97

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: MAFR 3 020 1025

Chipbreaker: MA

Corner Radius: 0.008 in

Country of Origin: JP

Cutting Direction: Right Hand

Finish: PVD-TiAlN+TiN Coated

For Use On: Cast Iron, Heat-Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel

Insert Size: 3020

Insert Style: MAFR

ISO Code: MAFR 3 020 1025

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1025

Material: Carbide

Material Grade: K, M, N, P, S

Maximum Depth of Cut: 0.236 in

Rake: Positive

Relief Angle: 6 deg

Seat Size: 3

Series: CoroCut XS

Shape: Parallelogram

Thickness: 1/8 in

Type: 2-Sided

Sharp cutting edges
All inserts fit into the same tool holder
High quality ground inserts and holders
Full profile inserts for high quality threads in one operation
Designed to maintain the tool holder intact in case of insert breakage
High precision, close tolerances and easy indexing
Good accessibility when changing inserts
Wide variety of insert widths
Internal grooving at very small diameters
