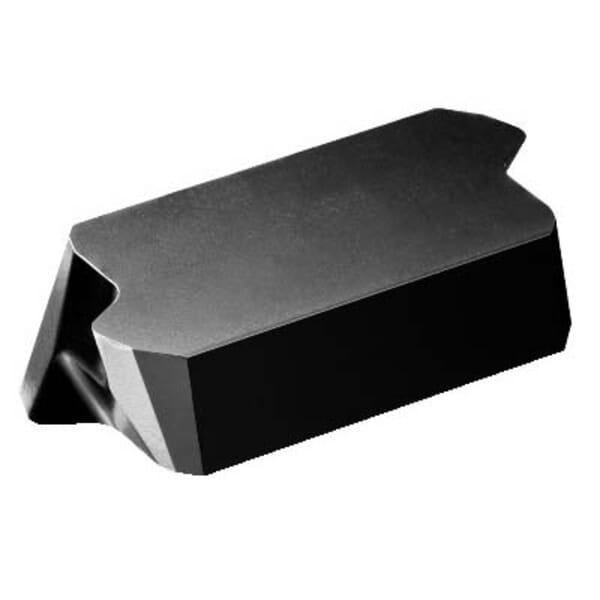

Sandvik Coromant 5735073 T-Max 45 Milling Insert, ANSI Code: LNCX 18 06 AZ L-11 3040, LNCX Insert, 1806 Insert, Carbide, Manufacturers Grade: 3040, Rectangle Shape, Material Grade: H, K, N, P

ManufacturerSandvik Coromant

Part #826235073

MFG #5735073

Sandvik Coromant Milling Insert, Series: T-Max 45, LNCX Insert, 1806 Insert, Rectangle Shape, 0.709 in Inscribed Circle, 0.252 in Thickness, 0.394 in Width, 0.739 in Length, L11 Chipbreaker, Negative Rake, 45 deg Lead Angle, Manufacturers Grade: 3040, ANSI Code: LNCX 18 06 AZ L-11 3040, ISO Code: LNCX 18 06 AZ L-11 3040, Left Hand of Insert, Carbide, MTCVD Coated, Material Grade: H, K, N, P, Cast Iron, Hardened Steel, Non-Ferrous Metals and Steel Material Application

$43.42

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: LNCX 18 06 AZ L-11 3040

Chipbreaker: L11

Country of Origin: JP

Finish: MTCVD Coated

Hand of Insert: Left

Inscribed Circle: 0.709 in

Insert Size: 1806

Insert Style: LNCX

ISO Code: LNCX 18 06 AZ L-11 3040

Lead Angle: 45 deg

Length: 0.739 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3040

Material: Carbide

Material Application: Cast Iron, Hardened Steel, Non-Ferrous Metals and Steel

Material Grade: H, K, N, P

Rake: Negative

Series: T-Max 45

Shape: Rectangle

Thickness: 0.252 in

Width: 0.394 in

High metal removal in powerful machines
Spring loaded insert clamping system for quick and easy insert change
Possibility to adjust the axial run-out within 5 micro for close tolerance machining
Insert geometries and grades for all materials
Wiper insert for improved surface finish

For roughing to semi-finishing face milling applications

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: LNCX 18 06 AZ L-11 3040

Chipbreaker: L11

Country of Origin: JP

Finish: MTCVD Coated

Hand of Insert: Left

Inscribed Circle: 0.709 in

Insert Size: 1806

Insert Style: LNCX

ISO Code: LNCX 18 06 AZ L-11 3040

Lead Angle: 45 deg

Length: 0.739 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3040

Material: Carbide

Material Application: Cast Iron, Hardened Steel, Non-Ferrous Metals and Steel

Material Grade: H, K, N, P

Rake: Negative

Series: T-Max 45

Shape: Rectangle

Thickness: 0.252 in

Width: 0.394 in

High metal removal in powerful machines
Spring loaded insert clamping system for quick and easy insert change
Possibility to adjust the axial run-out within 5 micro for close tolerance machining
Insert geometries and grades for all materials
Wiper insert for improved surface finish

For roughing to semi-finishing face milling applications
