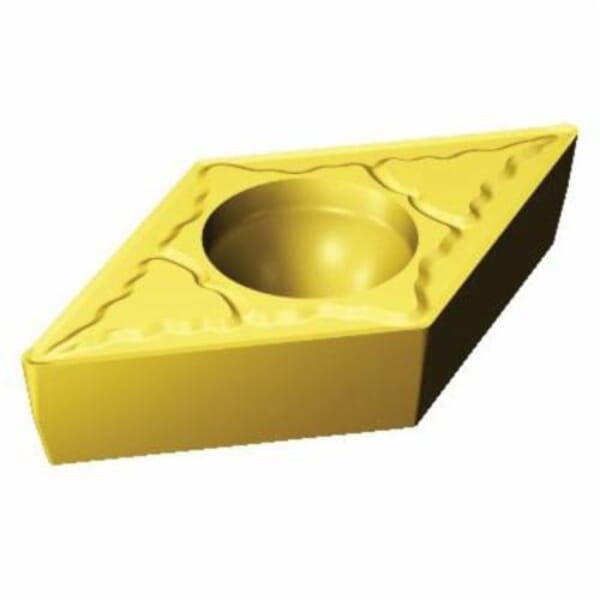

Sandvik Coromant 5734903 CoroTurn 111 Turning Insert, ANSI Code: DPMT 2(1.5)1-KM H13A, DPMT Insert, Material Grade: K, N, S, 2(1.5)1 Insert, Rhombic Shape, 7 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: H13A

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5734903 CoroTurn 111 Turning Insert, ANSI Code: DPMT 2(1.5)1-KM H13A, DPMT Insert, Material Grade: K, N, S, 2(1.5)1 Insert, Rhombic Shape, 7 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: H13A

ManufacturerSandvik Coromant

Part #826234903

MFG #5734903

Sandvik Coromant Turning Insert, Series: CoroTurn 111, DPMT Insert, 2(1.5)1 Insert, Rhombic, 0.087 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 7 Seat, Positive Rake, KM Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: H13A, ANSI Code: DPMT 2(1.5)1-KM H13A, ISO Code: DPMT 07 02 04-KM H13A, 55 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: K, N, S, For Use On: Cast Iron, Non-Ferrous Metals, Heat-Resistant Super Alloys and Titanium

$10.18

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: DPMT 2(1.5)1-KM H13A

Chipbreaker: KM

Corner Radius: 0.0156 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: Uncoated

For Use On: Cast Iron, Non-Ferrous Metals, Heat-Resistant Super Alloys and Titanium

Hole Diameter: 0.1102 in

Included Angle: 55 deg

Inscribed Circle: 1/4 in

Insert Size: 2(1.5)1

Insert Style: DPMT

ISO Code: DPMT 07 02 04-KM H13A

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Grade: K, N, S

Maximum Depth of Cut: 0.087 in

Rake: Positive

Relief Angle: 11 deg

Seat Size: 7

Series: CoroTurn 111

Shape: Rhombic

Thickness: 0.0937 in

Low cutting forces
Excellent edge strength
Screw clamping ensures stability and unobstructed chip flow

CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: DPMT 2(1.5)1-KM H13A

Chipbreaker: KM

Corner Radius: 0.0156 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: Uncoated

For Use On: Cast Iron, Non-Ferrous Metals, Heat-Resistant Super Alloys and Titanium

Hole Diameter: 0.1102 in

Included Angle: 55 deg

Inscribed Circle: 1/4 in

Insert Size: 2(1.5)1

Insert Style: DPMT

ISO Code: DPMT 07 02 04-KM H13A

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Grade: K, N, S

Maximum Depth of Cut: 0.087 in

Rake: Positive

Relief Angle: 11 deg

Seat Size: 7

Series: CoroTurn 111

Shape: Rhombic

Thickness: 0.0937 in

Low cutting forces
Excellent edge strength
Screw clamping ensures stability and unobstructed chip flow

CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.

SDS
