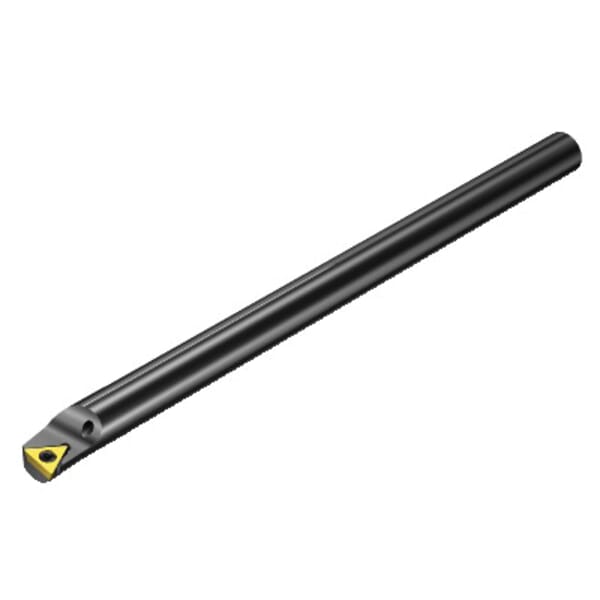

Sandvik Coromant 5734217 CoroTurn 111 Indexable Boring Bar, E..STFPR..-R Toolholder, 0.335 in Dia Min Bore, Right Hand of Holder, 3.937 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5734217 CoroTurn 111 Indexable Boring Bar, E..STFPR..-R Toolholder, 0.335 in Dia Min Bore, Right Hand of Holder, 3.937 in OAL

ManufacturerSandvik Coromant

Part #826234217

MFG #5734217

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 111, 0.335 in Minimum Bore Dia, 1.417 in Maximum Bore Depth, 3.937 in Overall Length, 0.236 in Shank Dia, Cylindrical Shank, Right Hand of Holder, E..STFPR..-R Toolholder Type, Insert Compatibility: TPMT 06 T1 02, Triangle Insert, 0.156 in Inscribed Circle, 5763196 Insert Screw, 0.078 in Insert Thickness, Carbide, Yes Through Coolant (Yes/No)

$356.48

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Right

Inscribed Circle: 0.156 in

Insert Compatibility: TPMT 06 T1 02

Insert Screw: 5763196

Insert Shape: Triangle

Insert Thickness: 0.078 in

Manufacturer Name: Sandvik Coromant

Material: Carbide

Maximum Bore Depth: 1.417 in

Minimum Bore Diameter: 0.335 in

Overall Length: 3.937 in

Series: CoroTurn 111

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: E..STFPR..-R

Secure insert clamping
Excellent repeatability
Free chip flow
Low cutting forces
Excellent edge strength
11 deg clearance angle
Positive insert shape
Screw clamping ensures stability and unobstructed chip flow
Tools with high pressure coolant
Insert geometries and grades for all materials
Internal turning with long overhangs or unstable conditions

5763196 Insert Screw and 5764138 Key

For internal turning applications

5763196 Insert Screw and 5764138 Key

Catalog

SDS

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Right

Inscribed Circle: 0.156 in

Insert Compatibility: TPMT 06 T1 02

Insert Screw: 5763196

Insert Shape: Triangle

Insert Thickness: 0.078 in

Manufacturer Name: Sandvik Coromant

Material: Carbide

Maximum Bore Depth: 1.417 in

Minimum Bore Diameter: 0.335 in

Overall Length: 3.937 in

Series: CoroTurn 111

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: E..STFPR..-R

Secure insert clamping
Excellent repeatability
Free chip flow
Low cutting forces
Excellent edge strength
11 deg clearance angle
Positive insert shape
Screw clamping ensures stability and unobstructed chip flow
Tools with high pressure coolant
Insert geometries and grades for all materials
Internal turning with long overhangs or unstable conditions

5763196 Insert Screw and 5764138 Key

For internal turning applications

5763196 Insert Screw and 5764138 Key

Catalog

SDS
