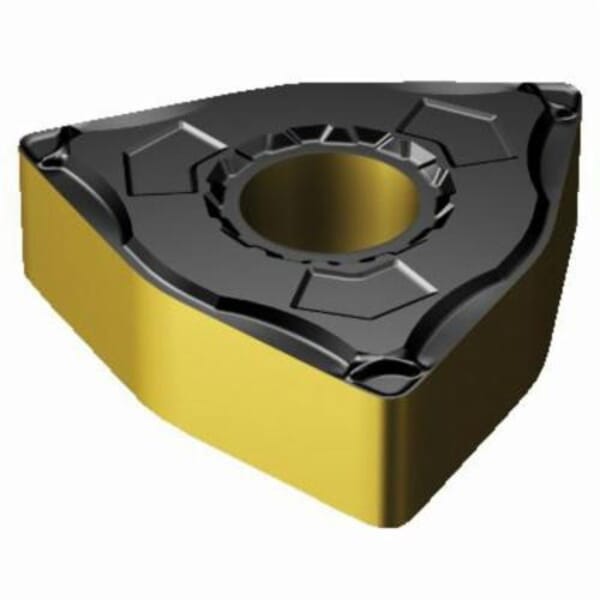

Sandvik Coromant 6434196 T-Max P Turning Insert, ANSI Code: WNMG 432-WL 4325, WNMG Insert, Material Grade: P, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: 4325

ManufacturerSandvik Coromant

Part #826234196

MFG #6434196

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 432 Insert, Trigon, 1.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, WL Chipbreaker, 0.031 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: WNMG 432-WL 4325, ISO Code: WNMG 08 04 08-WL 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel

$23.20

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 432-WL 4325

Chipbreaker: WL

Corner Radius: 0.031 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Steel

Hole Diameter: 0.2029 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMG

ISO Code: WNMG 08 04 08-WL 4325

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4325

Material: Carbide

Material Grade: P

Maximum Depth of Cut: 1.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 08

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 432 Insert, Trigon, 1.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, WL Chipbreaker, 0.031 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: WNMG 432-WL 4325, ISO Code: WNMG 08 04 08-WL 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
