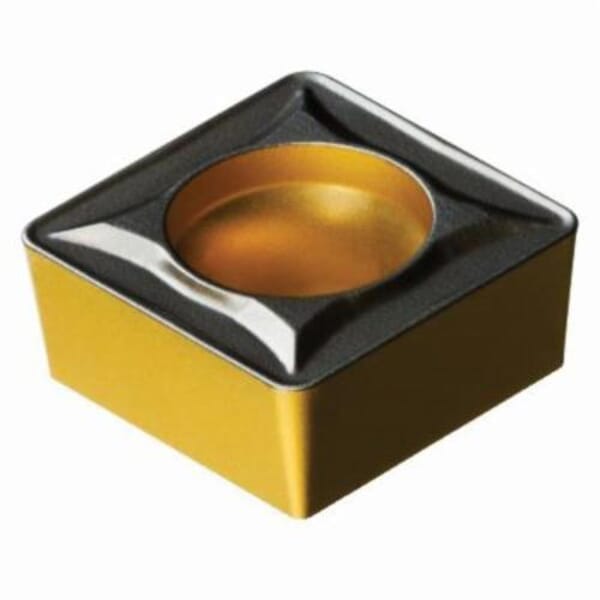

Sandvik Coromant 6434170 CoroTurn 107 Turning Insert, ANSI Code: SCMT 432-UR 4325, SCMT Insert, Material Grade: K, P, 432 Insert, Squared Shape, 12 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6434170 CoroTurn 107 Turning Insert, ANSI Code: SCMT 432-UR 4325, SCMT Insert, Material Grade: K, P, 432 Insert, Squared Shape, 12 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

ManufacturerSandvik Coromant

Part #826234170

MFG #6434170

Sandvik Coromant Turning Insert, Series: CoroTurn 107, SCMT Insert, 432 Insert, Squared, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Positive Rake, UR Chipbreaker, 0.0312 in Corner Radius, 0.2165 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: SCMT 432-UR 4325, ISO Code: SCMT 12 04 08-UR 4325, 90 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$22.92

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: SCMT 432-UR 4325

Chipbreaker: UR

Corner Radius: 0.0312 in

Country of Origin: IN

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.2165 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SCMT

ISO Code: SCMT 12 04 08-UR 4325

Length: 1/2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4325

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 4 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 12

Series: CoroTurn 107

Shape: Squared

Thickness: 0.187 in

Width: 1/2 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
40 to 60 deg countersunk hole and non-flat surface

Sandvik Coromant Turning Insert, Series: CoroTurn 107, SCMT Insert, 432 Insert, Squared, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Positive Rake, UR Chipbreaker, 0.0312 in Corner Radius, 0.2165 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: SCMT 432-UR 4325, ISO Code: SCMT 12 04 08-UR 4325, 90 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
