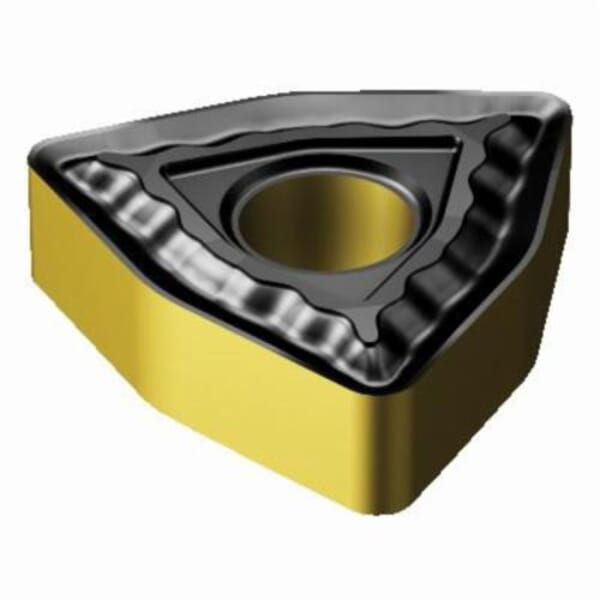

Sandvik Coromant 6434117 T-Max P Turning Insert, ANSI Code: WNMG 333-QM 4325, WNMG Insert, Material Grade: K, P, 333 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6434117 T-Max P Turning Insert, ANSI Code: WNMG 333-QM 4325, WNMG Insert, Material Grade: K, P, 333 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

ManufacturerSandvik Coromant

Part #826234117

MFG #6434117

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 333 Insert, Trigon, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 06 Seat, Negative Rake, QM Chipbreaker, 0.047 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: WNMG 333-QM 4325, ISO Code: WNMG 06 04 12-QM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$16.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 333-QM 4325

Chipbreaker: QM

Corner Radius: 0.047 in

Country of Origin: JP

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.15 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 333

Insert Style: WNMG

ISO Code: WNMG 06 04 12-QM 4325

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4325

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 06

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 333 Insert, Trigon, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 06 Seat, Negative Rake, QM Chipbreaker, 0.047 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: WNMG 333-QM 4325, ISO Code: WNMG 06 04 12-QM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
