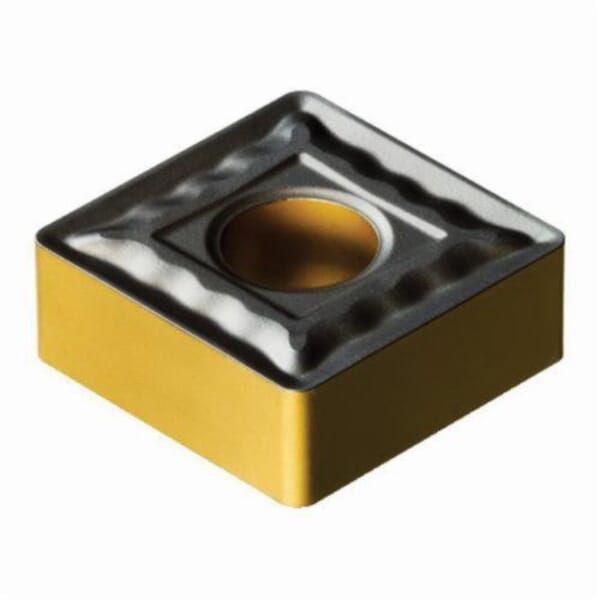

Sandvik Coromant 6434098 T-Max P Turning Insert, ANSI Code: SNMG 322-QM 4325, SNMG Insert, Material Grade: K, P, 322 Insert, Squared Shape, 09 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

ManufacturerSandvik Coromant

Part #826234098

MFG #6434098

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 322 Insert, Squared, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Width, 3/8 in Length, 09 Seat, Negative Rake, QM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: SNMG 322-QM 4325, ISO Code: SNMG 09 03 08-QM 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$12.02

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: SNMG 322-QM 4325

Chipbreaker: QM

Corner Radius: 0.0312 in

Country of Origin: US

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.15 in

Included Angle: 90 deg

Inscribed Circle: 3/8 in

Insert Size: 322

Insert Style: SNMG

ISO Code: SNMG 09 03 08-QM 4325

Length: 3/8 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4325

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 4.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 09

Series: T-Max P

Shape: Squared

Thickness: 1/8 in

Width: 3/8 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 322 Insert, Squared, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Width, 3/8 in Length, 09 Seat, Negative Rake, QM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: SNMG 322-QM 4325, ISO Code: SNMG 09 03 08-QM 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
