Sandvik Coromant 6433936 CoroTurn TR Basic Shape Turning Insert, ANSI Code: TR-DC1304-F 4325, TR-DC Insert, Material Grade: K, P, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6433936 CoroTurn TR Basic Shape Turning Insert, ANSI Code: TR-DC1304-F 4325, TR-DC Insert, Material Grade: K, P, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

ManufacturerSandvik Coromant

Part #826233936

MFG #6433936

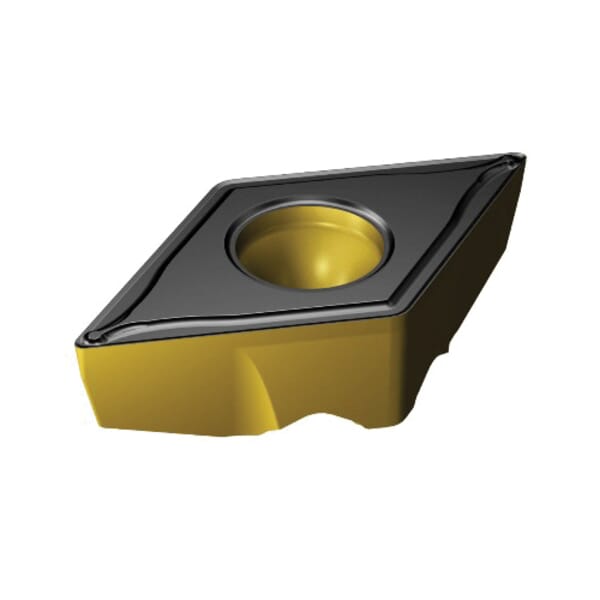

Sandvik Coromant Turning Insert, Basic Shape, Series: CoroTurn TR, TR-DC Insert, 1304 Insert, Rhombic, 0.118 in Maximum Depth of Cut, 0.433 in Inscribed Circle, 0.2175 in Thickness, 13 Seat, Positive Rake, F Chipbreaker, 0.0156 in Corner Radius, 0.1456 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TR-DC1304-F 4325, ISO Code: TR-DC1304-F 4325, 55 deg Included Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$23.28

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: TR-DC1304-F 4325
Chipbreaker: F
Corner Radius: 0.0156 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.1456 in
Included Angle: 55 deg
Inscribed Circle: 0.433 in
Insert Size: 1304
Insert Style: TR-DC
ISO Code: TR-DC1304-F 4325
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4325
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.118 in
Rake: Positive
Seat Size: 13
Series: CoroTurn TR
Shape: Rhombic
Thickness: 0.2175 in
Type: Basic Shape
: Sandvik Coromant Turning Insert, Basic Shape, Series: CoroTurn TR, TR-DC Insert, 1304 Insert, Rhombic, 0.118 in Maximum Depth of Cut, 0.433 in Inscribed Circle, 0.2175 in Thickness, 13 Seat, Positive Rake, F Chipbreaker, 0.0156 in Corner Radius, 0.1456 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TR-DC1304-F 4325, ISO Code: TR-DC1304-F 4325, 55 deg Included Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
