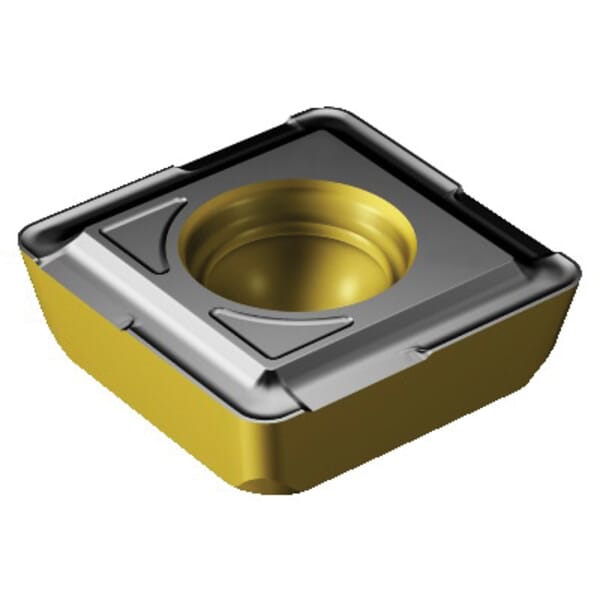

Sandvik Coromant 6633731 CoroDrill 880 Drilling Insert, ANSI Code: 880-09 06 W12H-P-GT 4334, Squared Shape, Material Grade: H, K, M, N, P, S, 0906W12 Insert, 880..P-GT Insert, 0.2165 in THK, 0.7322 in Inscribed Circle, High Feed, Asymmetrical Point

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6633731 CoroDrill 880 Drilling Insert, ANSI Code: 880-09 06 W12H-P-GT 4334, Squared Shape, Material Grade: H, K, M, N, P, S, 0906W12 Insert, 880..P-GT Insert, 0.2165 in THK, 0.7322 in Inscribed Circle, High Feed, Asymmetrical Point

ManufacturerSandvik Coromant

Part #826233731

MFG #6633731

Sandvik Coromant Drilling Insert, Series: CoroDrill 880, 880..P-GT Insert, 0906W12 Insert, Squared, 0.7322 in Inscribed Circle, 0.2165 in Thickness, GT Chipbreaker, 0.0472 in Corner Radius, 0.185 in Hole Dia, Manufacturers Grade: 4334, ANSI Code: 880-09 06 W12H-P-GT 4334, Right Hand, ISO Code: 880-09 06 W12H-P-GT 4334, Asymmetrical Point, High Feed, For Use On: Cast Iron, Heat Resistant Materials, Hardened Materials, Steel, Stainless Steel and Super Alloys, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, M, N, P, S

$32.87

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 880-09 06 W12H-P-GT 4334

Chipbreaker: GT

Corner Radius: 0.0472 in

Country of Origin: SE

Drilling Application: Asymmetrical Point

Feed Type: High

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron, Heat Resistant Materials, Hardened Materials, Steel, Stainless Steel and Super Alloys

Hand of Insert: Right

Hole Diameter: 0.185 in

Inscribed Circle: 0.7322 in

Insert Size: 0906W12

Insert Style: 880..P-GT

ISO Code: 880-09 06 W12H-P-GT 4334

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4334

Material: Carbide

Material Grade: H, K, M, N, P, S

Series: CoroDrill 880

Shape: Squared

Thickness: 0.2165 in

Wiper geometry for best surface finish or higher feed possibilities
Optimized chip channels for accelerated chip evacuation
Easy identification due to laser marking with drill-, insert- and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life
Entering the workpiece with an assymetrical drill by default generates an unbalance
Step technology provide a step-by-step entry with lower cutting forces, and therefore enable a higher productivity as well as close hole tolerances
Inserts and geometries, available for all materials and applications, provide high productivity and extended tool life
With CoroDrill 880, you can do more than just drilling a hole
The tool can also be used for helical interpolation, boring, plunging, and turning

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 880-09 06 W12H-P-GT 4334

Chipbreaker: GT

Corner Radius: 0.0472 in

Country of Origin: SE

Drilling Application: Asymmetrical Point

Feed Type: High

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron, Heat Resistant Materials, Hardened Materials, Steel, Stainless Steel and Super Alloys

Hand of Insert: Right

Hole Diameter: 0.185 in

Inscribed Circle: 0.7322 in

Insert Size: 0906W12

Insert Style: 880..P-GT

ISO Code: 880-09 06 W12H-P-GT 4334

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4334

Material: Carbide

Material Grade: H, K, M, N, P, S

Series: CoroDrill 880

Shape: Squared

Thickness: 0.2165 in

Wiper geometry for best surface finish or higher feed possibilities
Optimized chip channels for accelerated chip evacuation
Easy identification due to laser marking with drill-, insert- and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life
Entering the workpiece with an assymetrical drill by default generates an unbalance
Step technology provide a step-by-step entry with lower cutting forces, and therefore enable a higher productivity as well as close hole tolerances
Inserts and geometries, available for all materials and applications, provide high productivity and extended tool life
With CoroDrill 880, you can do more than just drilling a hole
The tool can also be used for helical interpolation, boring, plunging, and turning
