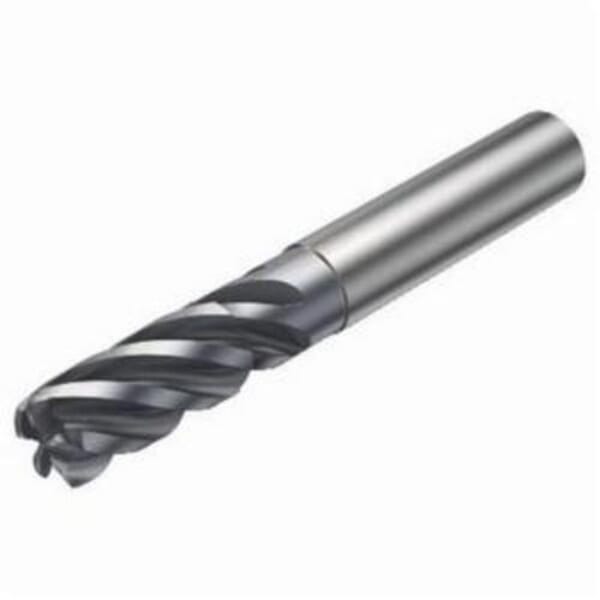

Sandvik Coromant 6732544 CoroMill Plura Square Shoulder End Mill, 0.393 in Dia Cutter, 0.866 in Length of Cut, 5 Flutes, 0.393 in Dia Shank, 2.834 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6732544 CoroMill Plura Square Shoulder End Mill, 0.393 in Dia Cutter, 0.866 in Length of Cut, 5 Flutes, 0.393 in Dia Shank, 2.834 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826232544

MFG #6732544

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.393 in Diameter Cutter, 2.834 in Overall Length, 0.866 in Length of Cut, 5 Flutes, 0.393 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: 2F342-1000-050-PC 1730, ISO Code: 2F342-1000-050-PC 1730, Solid Carbide, PVD Coated

$240.27

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2F342-1000-050-PC 1730

Country of Origin: IT

Cutter Diameter: 0.393 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 38 deg

ISO Code: 2F342-1000-050-PC 1730

Length of Cut: 0.866 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 5

Overall Length: 2.834 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Cylindrical

Type: Square

1730 manufacturer grade
1.5 mm maximum working engagement
1 maximum working engagement ratio
9.5 mm Dia body
0 - 30 deg body half taper
6 mm Dia core at face
30 mm L body
Without coolant entry
Cutting pitch differential
No coolant exit
9 mm Dia cutting face contact
9.5 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
10.5 deg axial rake
30 mm L usable
2 maximum regrinds
32 mm overhang
0.5 mm corner radius

DIN1835-A|DIN6535-HA

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.393 in Diameter Cutter, 2.834 in Overall Length, 0.866 in Length of Cut, 5 Flutes, 0.393 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: 2F342-1000-050-PC 1730, ISO Code: 2F342-1000-050-PC 1730, Solid Carbide, PVD Coated
