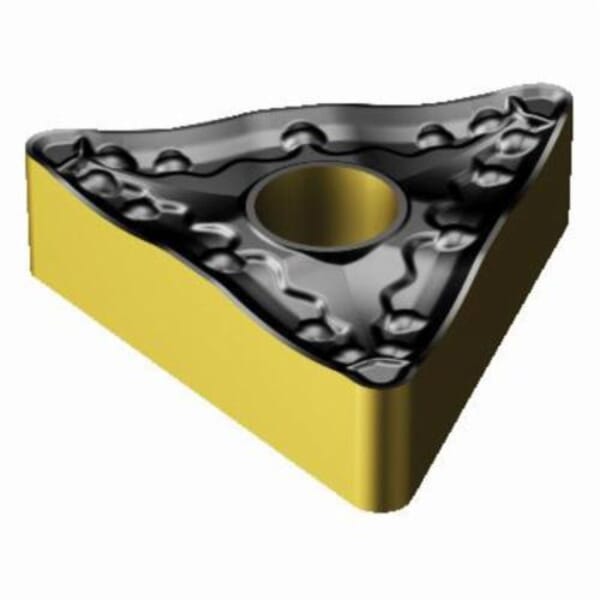

Sandvik Coromant 6532450 T-Max P Turning Insert, ANSI Code: TNMM 432-PR 4325, TNMM Insert, Material Grade: K, P, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6532450 T-Max P Turning Insert, ANSI Code: TNMM 432-PR 4325, TNMM Insert, Material Grade: K, P, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

ManufacturerSandvik Coromant

Part #826232450

MFG #6532450

Sandvik Coromant Turning Insert, Series: T-Max P, TNMM Insert, 432 Insert, Triangular, 8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.866 in Length, 22 Seat, Negative Rake, PR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TNMM 432-PR 4325, ISO Code: TNMM 22 04 08-PR 4325, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$22.28

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: TNMM 432-PR 4325

Chipbreaker: PR

Corner Radius: 0.0312 in

Country of Origin: US

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.2029 in

Included Angle: 60 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: TNMM

ISO Code: TNMM 22 04 08-PR 4325

Length: 0.866 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4325

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 8 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 22

Series: T-Max P

Shape: Triangular

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, TNMM Insert, 432 Insert, Triangular, 8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.866 in Length, 22 Seat, Negative Rake, PR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TNMM 432-PR 4325, ISO Code: TNMM 22 04 08-PR 4325, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: TNMM 432-PR 4325

Chipbreaker: PR

Corner Radius: 0.0312 in

Country of Origin: US

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.2029 in

Included Angle: 60 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: TNMM

ISO Code: TNMM 22 04 08-PR 4325

Length: 0.866 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4325

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 8 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 22

Series: T-Max P

Shape: Triangular

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, TNMM Insert, 432 Insert, Triangular, 8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.866 in Length, 22 Seat, Negative Rake, PR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TNMM 432-PR 4325, ISO Code: TNMM 22 04 08-PR 4325, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

SDS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik CoromantSandvik Coromant 6532450 T-Max P Turning Insert, ANSI Code: TNMM 432-PR 4325, TNMM Insert, Material Grade: K, P, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325

Part #:826232450

MFG #:6532450

$22.28

/ EA

QTY
