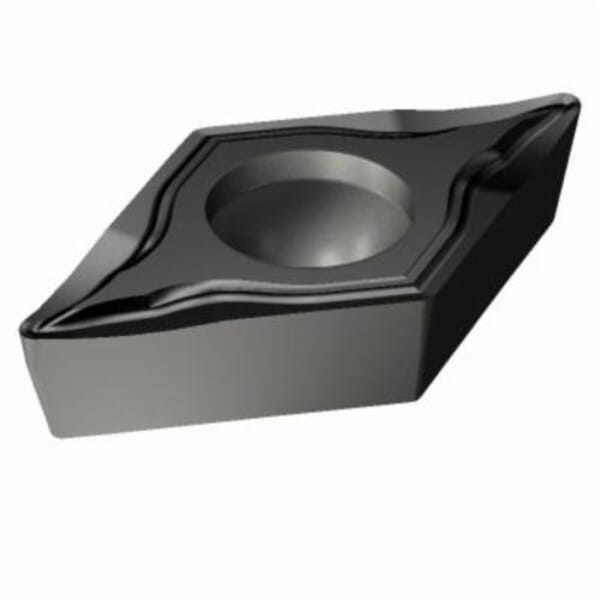

Sandvik Coromant 5730424 CoroTurn 107 Turning Insert, ANSI Code: DCGT 2(1.5)0-UM 1105, DCGT Insert, Material Grade: S, 2(1.5)0 Insert, Diamond Shape, 07 Seat, Positive Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys and Titanium, Carbide

ManufacturerSandvik Coromant

Part #826230424

MFG #5730424

Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCGT Insert, 2(1.5)0 Insert, Diamond, 1.5 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 07 Seat, Positive Rake, UM Chipbreaker, 0.008 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 1105, ANSI Code: DCGT 2(1.5)0-UM 1105, ISO Code: DCGT 07 02 02-UM 1105, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys and Titanium

$25.03

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: DCGT 2(1.5)0-UM 1105

Chipbreaker: UM

Corner Radius: 0.008 in

Country of Origin: IN

Cutting Direction: Neutral

Finish: PVD-TiAlN2 Coated

For Use On: Heat Resistant Super Alloys and Titanium

Hole Diameter: 0.1102 in

Included Angle: 55 deg

Inscribed Circle: 1/4 in

Insert Size: 2(1.5)0

Insert Style: DCGT

ISO Code: DCGT 07 02 02-UM 1105

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1105

Material: Carbide

Material Grade: S

Maximum Depth of Cut: 1.5 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 07

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.0937 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCGT Insert, 2(1.5)0 Insert, Diamond, 1.5 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 07 Seat, Positive Rake, UM Chipbreaker, 0.008 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 1105, ANSI Code: DCGT 2(1.5)0-UM 1105, ISO Code: DCGT 07 02 02-UM 1105, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys and Titanium

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: DCGT 2(1.5)0-UM 1105

Chipbreaker: UM

Corner Radius: 0.008 in

Country of Origin: IN

Cutting Direction: Neutral

Finish: PVD-TiAlN2 Coated

For Use On: Heat Resistant Super Alloys and Titanium

Hole Diameter: 0.1102 in

Included Angle: 55 deg

Inscribed Circle: 1/4 in

Insert Size: 2(1.5)0

Insert Style: DCGT

ISO Code: DCGT 07 02 02-UM 1105

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1105

Material: Carbide

Material Grade: S

Maximum Depth of Cut: 1.5 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 07

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.0937 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCGT Insert, 2(1.5)0 Insert, Diamond, 1.5 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 07 Seat, Positive Rake, UM Chipbreaker, 0.008 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 1105, ANSI Code: DCGT 2(1.5)0-UM 1105, ISO Code: DCGT 07 02 02-UM 1105, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys and Titanium
