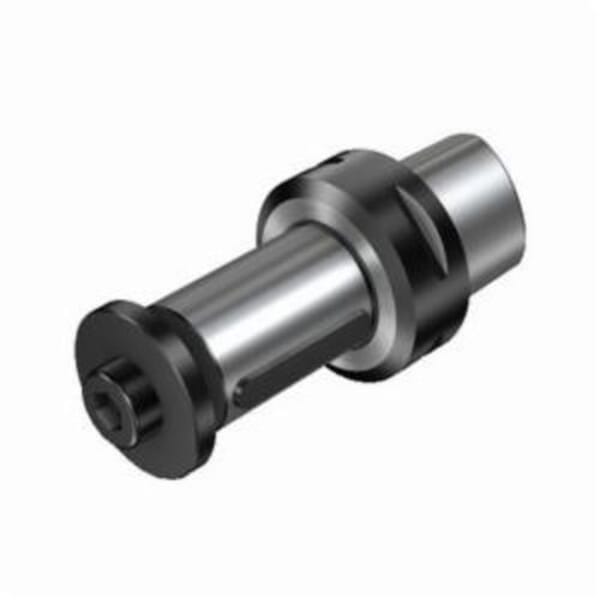

Sandvik Coromant 5730128 Adapter, 0.8661 in Dia Hole, PSC Taper x Arbor Shank, C5 Taper, 0.8661 in Dia Nose, 0.9842 in Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5730128 Adapter, 0.8661 in Dia Hole, PSC Taper x Arbor Shank, C5 Taper, 0.8661 in Dia Nose, 0.9842 in Projection

ManufacturerSandvik Coromant

Part #826230128

MFG #5730128

Sandvik Coromant Adapter, in Shank Type 0.8661, in Projection 0.8661, in Overall Length 0.9842, in Overall Diameter 2.1653, in Shank Connection Size 1.9685, in ANSI Code 1.9685 x 0.8661

$523.17

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: C5-391.10-22 025

Country of Origin: DE

Hole Diameter: 0.8661 in

ISO Code: C5-391.10-22 025

Manufacturer Name: Sandvik Coromant

Nose Diameter: 0.8661 in

Overall Diameter: 1.9685 in

Overall Length: 2.1653 in

Projection: 0.9842 in

Shank Connection Size: 1.9685 x 0.8661 in

Shank Type: Coromant Capto x Side and Face Mill Arbor, PSC Taper x Arbor

Taper Size: C5

5758337 Key, 5758381 Parallel Key, 5758491 Screw and 5763363 Washer

Steel body
Without coolant entry
No coolant exit
50 mm Dia machine side connection
40 mm L clamping
25 mm overhang
45 Nm torque
Cx-391.10 (3) tool style
20 life cycle state
Cormorant Capto x Side and Face Mill Arbor

5758337 Key, 5758381 Parallel Key, 5758491 Screw and 5763363 Washer

Sandvik Coromant Adapter, in Shank Type 0.8661, in Projection 0.8661, in Overall Length 0.9842, in Overall Diameter 2.1653, in Shank Connection Size 1.9685, in ANSI Code 1.9685 x 0.8661

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: C5-391.10-22 025

Country of Origin: DE

Hole Diameter: 0.8661 in

ISO Code: C5-391.10-22 025

Manufacturer Name: Sandvik Coromant

Nose Diameter: 0.8661 in

Overall Diameter: 1.9685 in

Overall Length: 2.1653 in

Projection: 0.9842 in

Shank Connection Size: 1.9685 x 0.8661 in

Shank Type: Coromant Capto x Side and Face Mill Arbor, PSC Taper x Arbor

Taper Size: C5

5758337 Key, 5758381 Parallel Key, 5758491 Screw and 5763363 Washer

Steel body
Without coolant entry
No coolant exit
50 mm Dia machine side connection
40 mm L clamping
25 mm overhang
45 Nm torque
Cx-391.10 (3) tool style
20 life cycle state
Cormorant Capto x Side and Face Mill Arbor

5758337 Key, 5758381 Parallel Key, 5758491 Screw and 5763363 Washer

Sandvik Coromant Adapter, in Shank Type 0.8661, in Projection 0.8661, in Overall Length 0.9842, in Overall Diameter 2.1653, in Shank Connection Size 1.9685, in ANSI Code 1.9685 x 0.8661

Catalog
