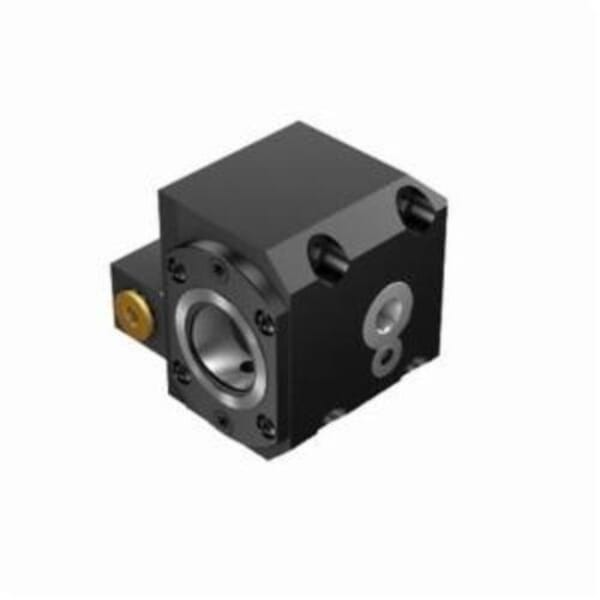

Sandvik Coromant 5729281 Left Hand Clamping Unit, Rectangle x PSC Taper Shank, C6 Workpiece Side, 1.5748 in Arbor/Shank, 5.3149 in Dia Body, 5.5118 in OAL

ManufacturerSandvik Coromant

Part #826229281

MFG #5729281

Sandvik Coromant Clamping Unit, Left Hand, 1.5748 in, 5.3149 in Body Dia, 5.5118 in Gage Length, 5.5118 in Overall Length, 5.3149 in Overall Width, 0.5118 in Centerline Height, ANSI Code: C6-LC2080-93140, ISO Code: C6-LC2080-93140, Rectangle x PSC Taper Shank, C6 System Size Workpiece Side

$2,534.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: C6-LC2080-93140

Arbor/Shank Size: 1.5748 in

Body Diameter: 5.3149 in

Centerline Height: 0.5118 in

Country of Origin: JP

Gage Length: 5.5118 in

ISO Code: C6-LC2080-93140

Manufacturer Name: Sandvik Coromant

Overall Length: 5.5118 in

Overall Width: 5.3149 in

Shank Type: Rectangle x PSC Taper, Rectangular Shank x Coromant Capto

System Size Workpiece Side: C6

Type: Left Hand

40 mm W shank
0 deg body half taper
Decentral over flange and axial coolant entry
G1/4 coolant thread
80 bar coolant
Radial coolant exit
40 mm H functional
9 mm overhang
90 Nm torque
Cx-R/LC2080 tool style
93 mm W functional
63 mm workpiece side connection
20 life cycle state

5723097 Torque Wrench, 5758519 Screw, 5758546 Screw, 5759074 Plain Bearing, 5759081 Plug, 5762217 Sleeve, 5762721 Cam Shaft, 5762964 Draw Bar Set, 5763177 Screw, 5763443 Locking Washer, 5763759 Compression Spring, 5763907 Plain Bearing, 5764082 Key Extension and 6630456 Parallel Pin
